X902 License Lamp Harness to Liftgate Harness

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

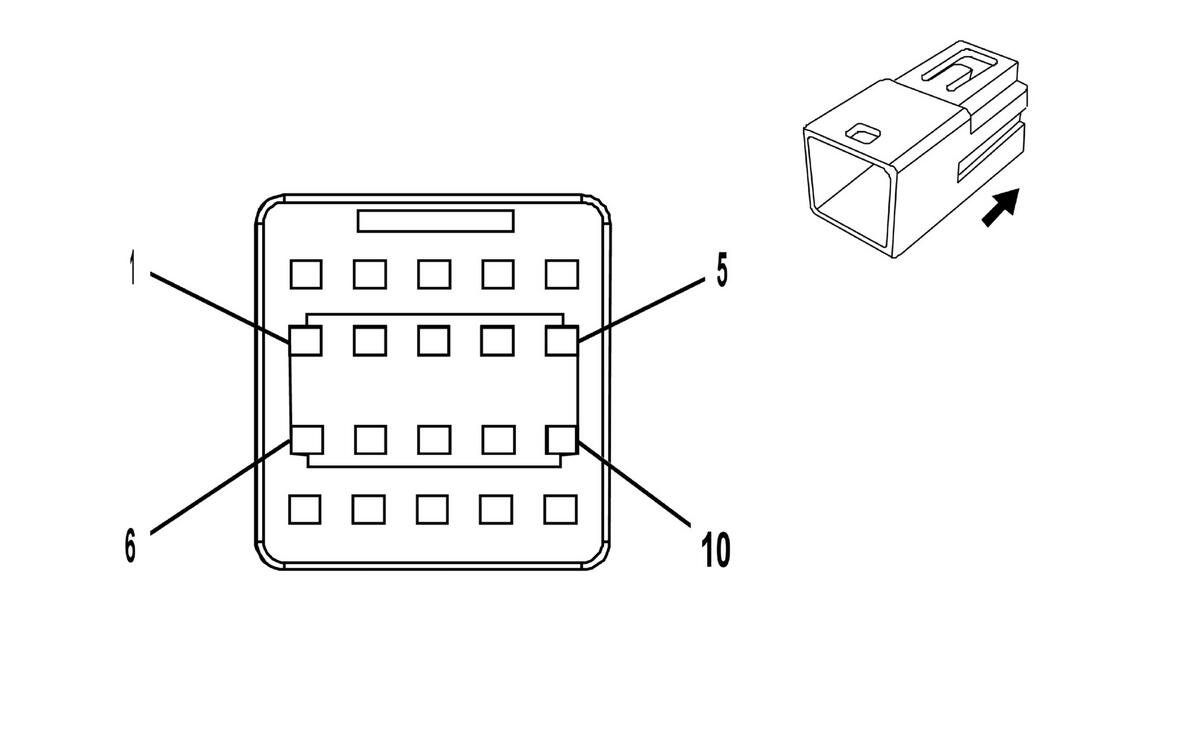

Connector Part Information Harness Type: License Lamp OEM Connector: 13577390 Service Connector: Service by Harness - See Part Catalog Description: 10-Way F 0.64 Kaizen Series (BK)	Connector Part Information Harness Type: Liftgate OEM Connector: 19177677 Service Connector: Service by Harness - See Part Catalog Description: 10-Way M 0.64 Kaizen Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-65B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	BK/VT	5801	I	-	Lift Gate Object Sensor Low Reference	1	0.35	BK/VT	5801	II	TB5/TC2
2	0.5	GN/YE	6846	I	-	Rear License Lamp Control	2	0.5	GN/YE	6846	II	-
3	0.5	VT/GY	6840	I	UVH	Auxiliary Device 2 Switched Voltage	3	0.5	VT/GY	6840	II	UVH
4	0.5	BK	1351	I	UVH	Signal Ground	4	0.5	BK/WH	1351	II	UVH
5	0.35	BARE	6974	I	UVC/UVH	Camera Low Reference	5	0.35	WH	6974	II	UVC/UVH
6	0.35	GY/YE	6972	I	UVC/UVH	Camera Signal 2 +	6	0.35	GY/YE	6972	II	UVC/UVH
7	0.35	WH/BU	6973	I	UVC/UVH	Camera Signal 2	7	0.35	WH/BU	6973	II	UVC/UVH
8	0.35	BK	5797	I	TB5/TC2/TB4	Rear Closure Handle Switch Open Signal	8	0.35 0.5	YE/BU YE/BU	5797 5797	II II	TB5/TC2 TB4
9	0.5	GN/WH	1324	I	UVC/UVH	Backup Lamp Control	9	0.5	GN/WH	1324	II	UVC/UVH
10	0.5	BK	2550	I	-	Ground	10	0.5	BK	2550	II	-
