Rear of Driver Seat Components

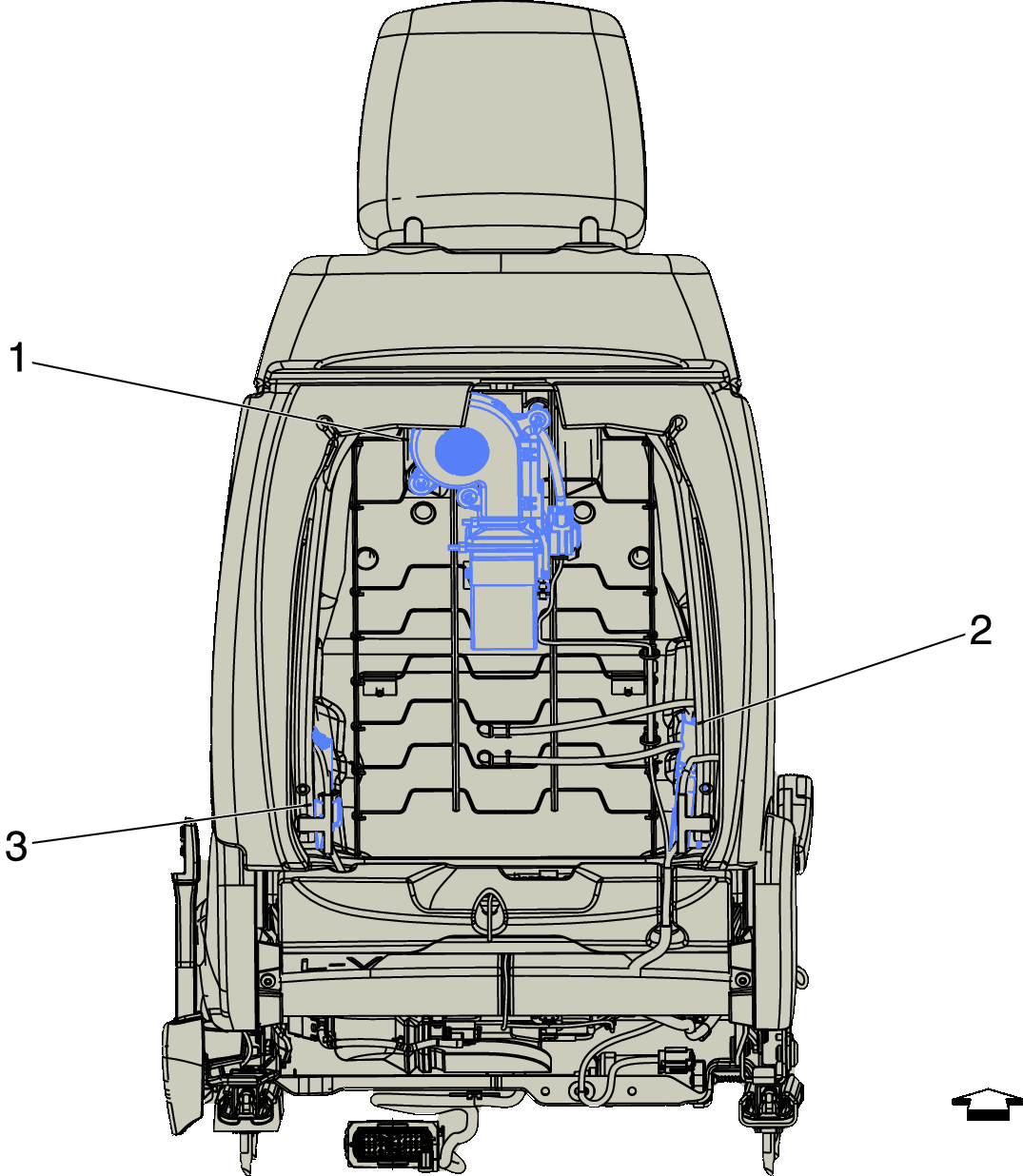

GM4006845Courtesy of GENERAL MOTORS COMPANY
Rear of Driver Seat Components

Items
1. M73A Seat Blower Motor - Driver Back (KU1) M73A Seat Blower Motor - Driver Back (KB6)
2. A14D Seat Lumbar Support Pump - Driver A14D Seat Lumbar Support Pump - Driver
3. M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver
