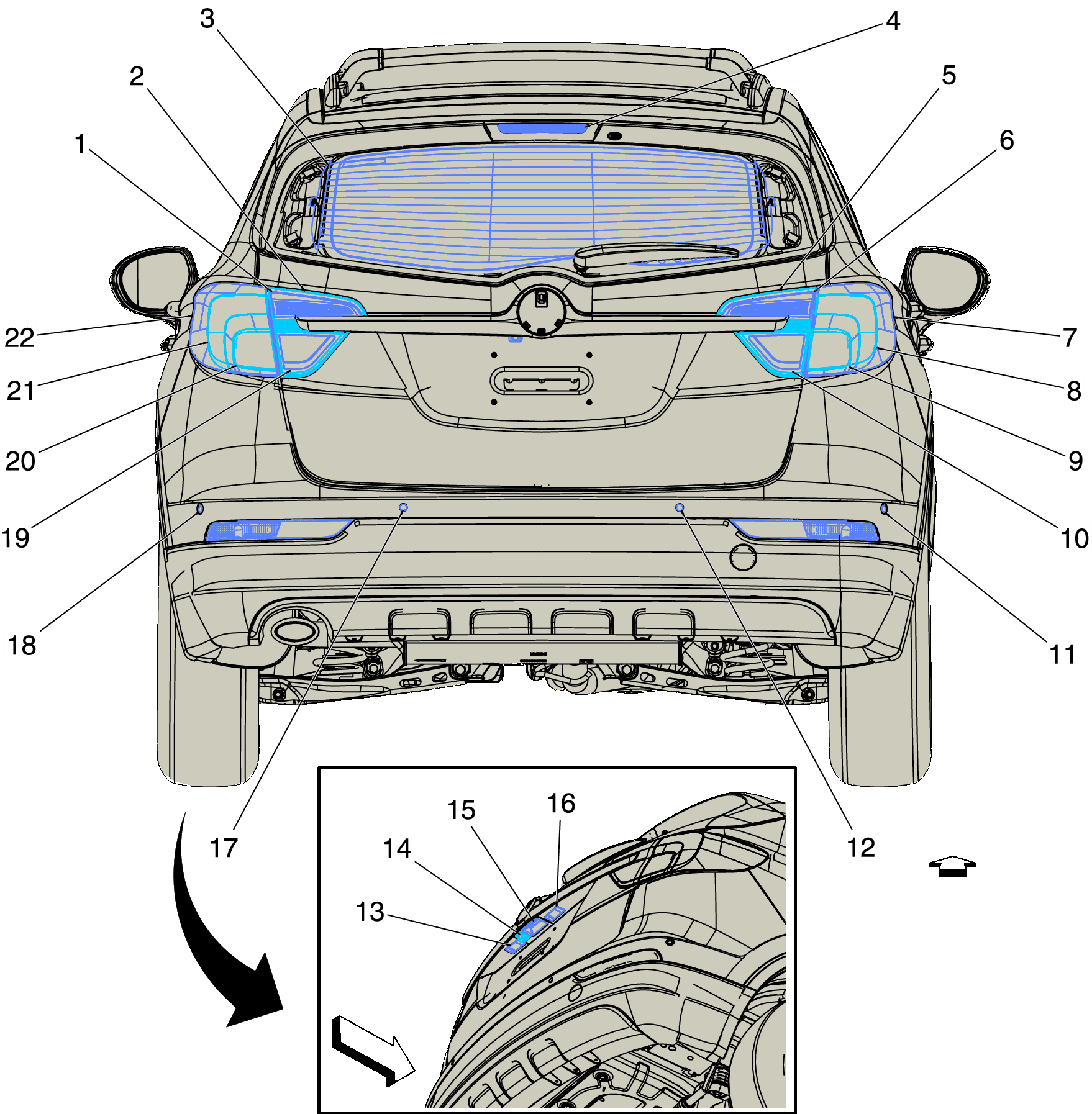

Rear of Vehicle Components
Rear of Vehicle Components
| Items |
|---|
| 1. E5LD Tail/Stop Lamp - Left Inner |
| 2. E43L Liftgate Tail Lamp Assembly - Left E43L Liftgate Tail Lamp Assembly - Left |
| 3. E18 Rear Defogger Grid E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2 |
| 4. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 5. E43R Liftgate Tail Lamp Assembly - Right E43R Liftgate Tail Lamp Assembly - Right |
| 6. E5RD Tail/Stop Lamp - Right Inner |
| 7. E42R Tail Lamp Assembly - Right |
| 8. E5RE Tail/Stop Lamp - Right Outer |
| 9. E4RR Turn Signal Lamp - Right Rear |
| 10. E5B Backup Lamp - Right |
| 11. B306H Parking Assist Sensor - Rear Right Outer B306H Parking Assist Sensor - Rear Right Outer |
| 12. B306G Parking Assist Sensor - Rear Right Middle B306G Parking Assist Sensor - Rear Right Middle |
| 13. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 14. B87 Rearview Camera B87 Rearview Camera (UVC) |
| 15. S46B Liftgate Unlatch Switch S46B Liftgate Unlatch Switch |
| 16. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 17. B306P |
| 18. B306E Parking Assist Sensor - Rear Left Outer B306E Parking Assist Sensor - Rear Left Outer |
| 19. E5A Backup Lamp - Left |
| 20. E4LR Turn Signal Lamp - Left Rear |
| 21. E5LE Tail/Stop Lamp - Left Outer |
| 22. E42L Tail Lamp Assembly - Left |
