Sunroof Sunshade Motor Replacement

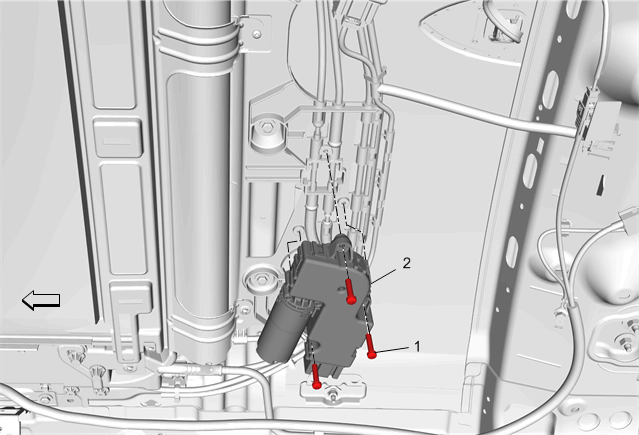

GM3872340

Callout

Component Name

Preliminary Procedure
Headlining Trim Panel Replacement

1

Sunroof Actuator Motor Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
With a turning motion, pull downward on the sunroof sunshade motor. Disengage the motor from the drive cables.
Install the sunroof sunshade motor to the frame with a turning motion, pushing upward. This will engage the motor into the drive cables.

Tighten
4 N.m (35 lb in)

2

Sunroof Sunshade Motor
Procedure
Verify the sunroof sunshade motor operation.
