Underbody Front Air Deflector Replacement

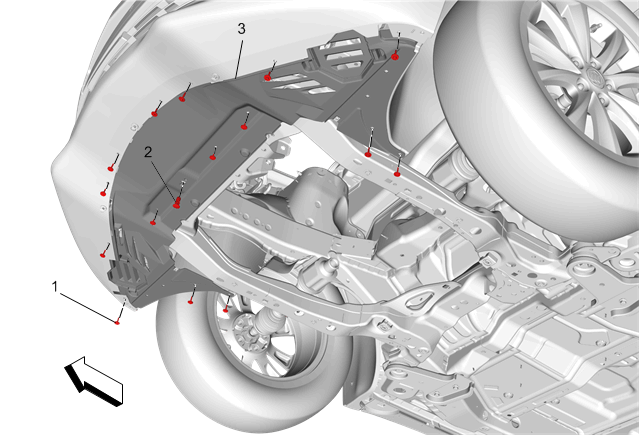

GM3824428
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front tire front air deflector. Refer to Front Tire Front Air Deflector Replacement .
1 Underbody Front Air Deflector Fasteners (Qty: 15)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Underbody Front Air Deflector Plastic Retainer
3 Underbody Front Air Deflector
