Front Wheel Opening Molding Replacement

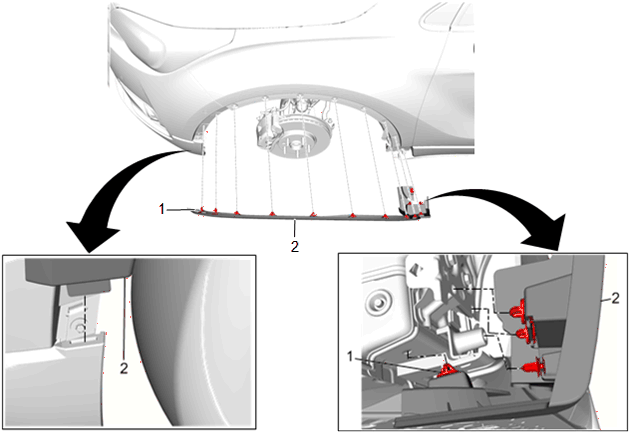

Callout	Component Name
Preliminary Procedure Remove the appropriate front wheelhouse liner: Front Wheelhouse Liner Replacement - Left Side Front Wheelhouse Liner Replacement - Right Side
1	Front Fender Wheel Opening Molding Retainer [15x]
2	Front Fender Wheel Opening Molding Procedure Apply two layers of masking tape around the top edge of the front wheel opening molding to prevent any paint surface damage. Using a suitable tool, release the retainers from around the front bumper fascia and the front fender from inside the front fender. Pull upward to release the molding from the front bumper lower fascia. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water and a clean towel, remove the left over adhesive residue from the masking tape.

Callout

Component Name

Preliminary Procedure
Remove the appropriate front wheelhouse liner:

Front Fender Wheel Opening Molding Retainer [15x]

Front Fender Wheel Opening Molding

Procedure

Apply two layers of masking tape around the top edge of the front wheel opening molding to prevent any paint surface damage.
Using a suitable tool, release the retainers from around the front bumper fascia and the front fender from inside the front fender.
Pull upward to release the molding from the front bumper lower fascia.
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water and a clean towel, remove the left over adhesive residue from the masking tape.
