Home >> Buick >> 2018 >> Envision Preferred, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Air Temperature and Driver Information Center

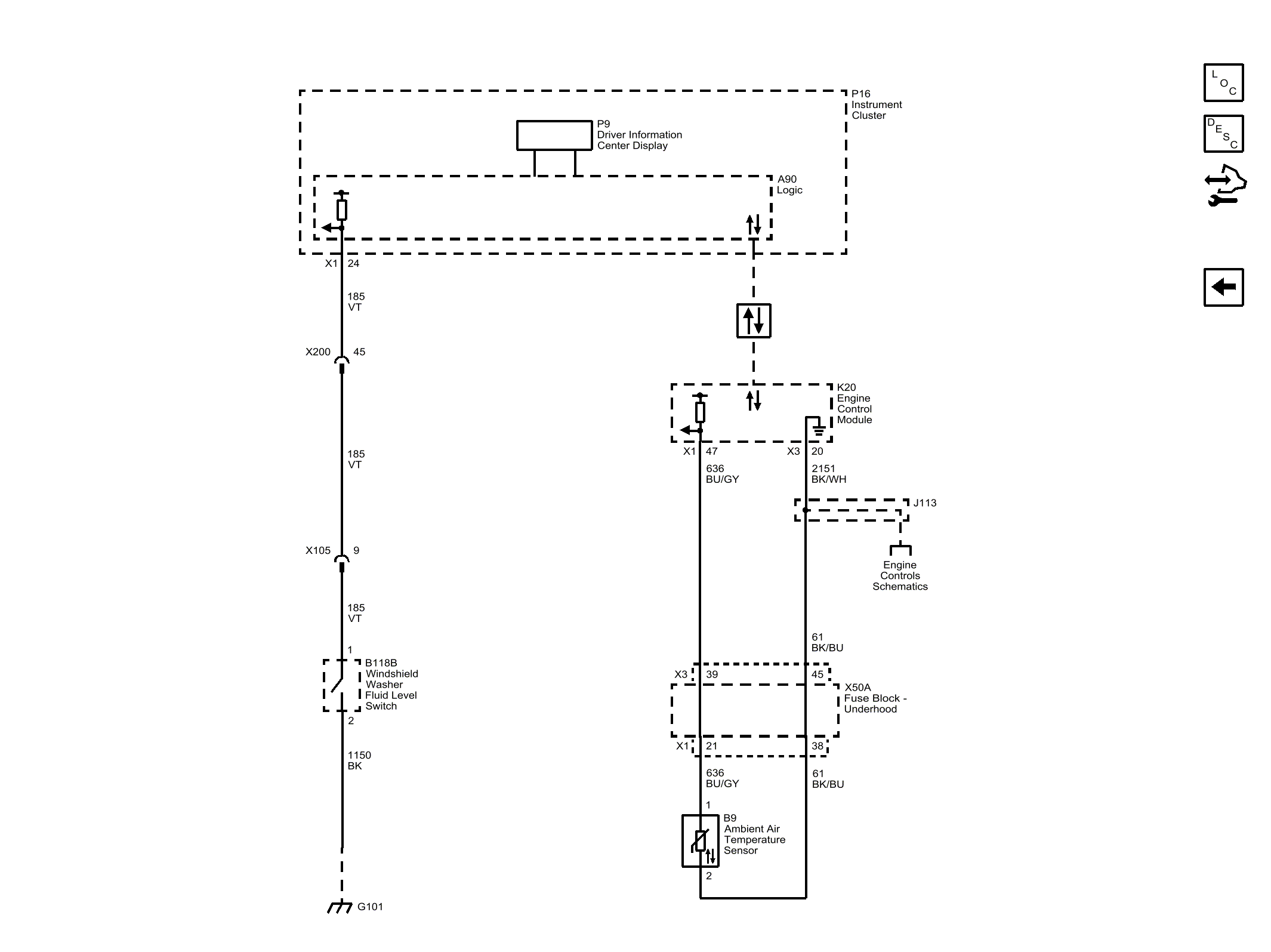

Air Temperature and Driver Information Center

GM4712419Courtesy of GENERAL MOTORS COMPANY
