Power Transfer Unit Alignment Sleeve, Face Seal, Input Shaft Bearing Race, Idler Gear Bearing Race and Shim, and Idler Gear Shaft Tube Seal Removal

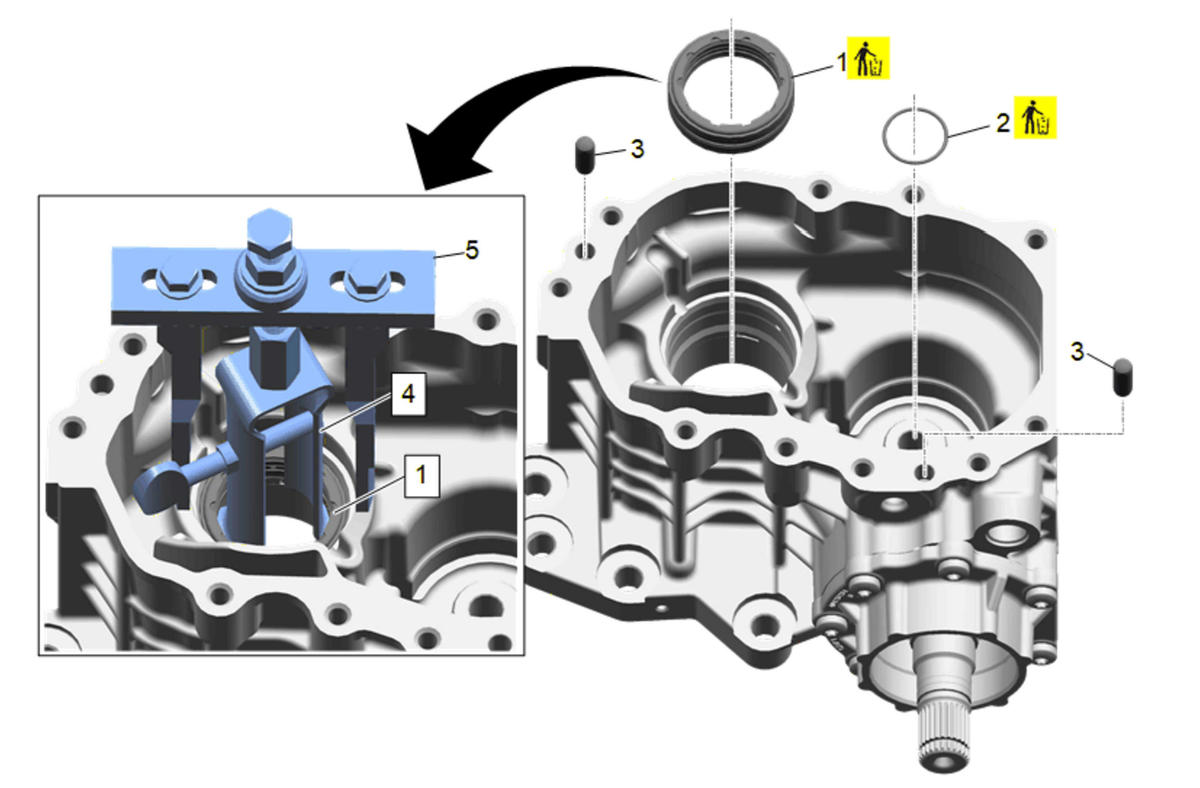

Fig 1: Exploded View Of Power Transfer Unit Alignment Sleeve, Face Seal, Input Shaft Bearing Race, Idler Gear Bearing Race And Shim, And Idler Gear Shaft Tube Seal Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit Input Shaft Bearing Race - Front NOTE: The bearing races are not an interference fit to the housing bore.
2	Power Transfer Unit Input Shaft Seal - Front NOTE: Remove and DISCARD the seal. Special Tools DT-26941 Bushing and Bearing Remover DT-45124 Removal Bridge Equivalent regional tools: Refer to Special Tools .
3	Power Transfer Unit Idler Gear Bearing Race - Front NOTE: The bearing races are not an interference fit to the housing bore.
4	Power Transfer Unit Idler Gear Bearing Race Shim - Front NOTE: The position of the shim for assembly.
5	Power Transfer Unit Idler Gear Shaft Tube O-ring - Front
6	Power Transfer Unit Locating Pins, as required (Qty: 2)
7	Power Transfer Unit Alignment Sleeve, as required. NOTE: Discard the alignment sleeve if removed. Install a NEW sleeve during assembly. Special Tools DT-44380 Differential Bearing Puller DT-45124 Removal Bridge DT-45124 - 9 Puller Legs Equivalent regional tools: Refer to Special Tools .
8	Power Transfer Unit Face Seal NOTE: Remove and DISCARD the seal.
