Power Transfer Unit Idler Gear Shaft Tube and O-ring, Input Shaft Bearing Race and Shim, and Idler Gear Shaft Bearing Race and Shim Installation

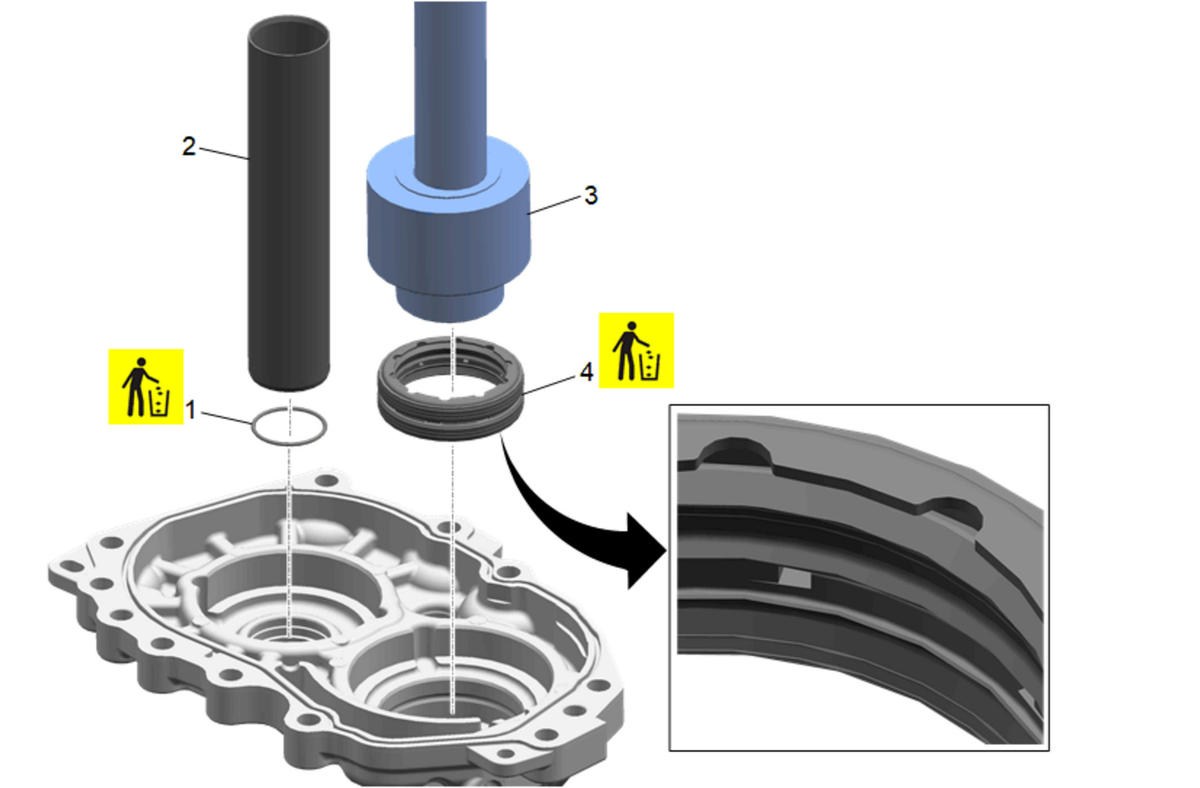

Fig 1: Exploded View Of Power Transfer Unit Idler Gear Shaft Tube And O-ring, Input Shaft Bearing Race And Shim, And Idler Gear Shaft Bearing Race And Shim Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit Idler Gear Shaft Access Tube O-ring- Rear
2	Power Transfer Unit Idler Gear Shaft Access Tube Procedure The tube orientation for assembly. Install the tube with the knurled OD area facing the extension housing.
3	Power Transfer Unit Idler Gear Shaft Bearing Race Shim- Rear NOTE: The position of the shim for assembly.
4	Power Transfer Unit Idler Gear Shaft Bearing Race- Rear Procedure The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
5	Power Transfer Unit Input Shaft Seal- Rear Procedure Make sure the seal bore is clean and free of oil or dirt. Install the NEW seal with the notched surface of the seal facing the DT-51466 Seal Installer with the metal ID portion of the seal facing the DT-51466 Seal Installer. Install the seal into the bore until the tool bottoms against the case half. Special Tools DT-51466 Seal Installer DT-305 - 1 Driver Handle Equivalent regional tools: Special Tools
6	Power Transfer Unit Idler Gear Shaft Bearing Race Shim- Rear NOTE: The position of the shim for assembly.
7	Power Transfer Unit Idler Gear Shaft Bearing Race- Rear Procedure The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
