Power Transfer Unit Alignment Sleeve, Face Seal, Input Shaft Bearing Race, Idler Gear Bearing Race and Shim, and Idler Gear Shaft Tube Seal Installation

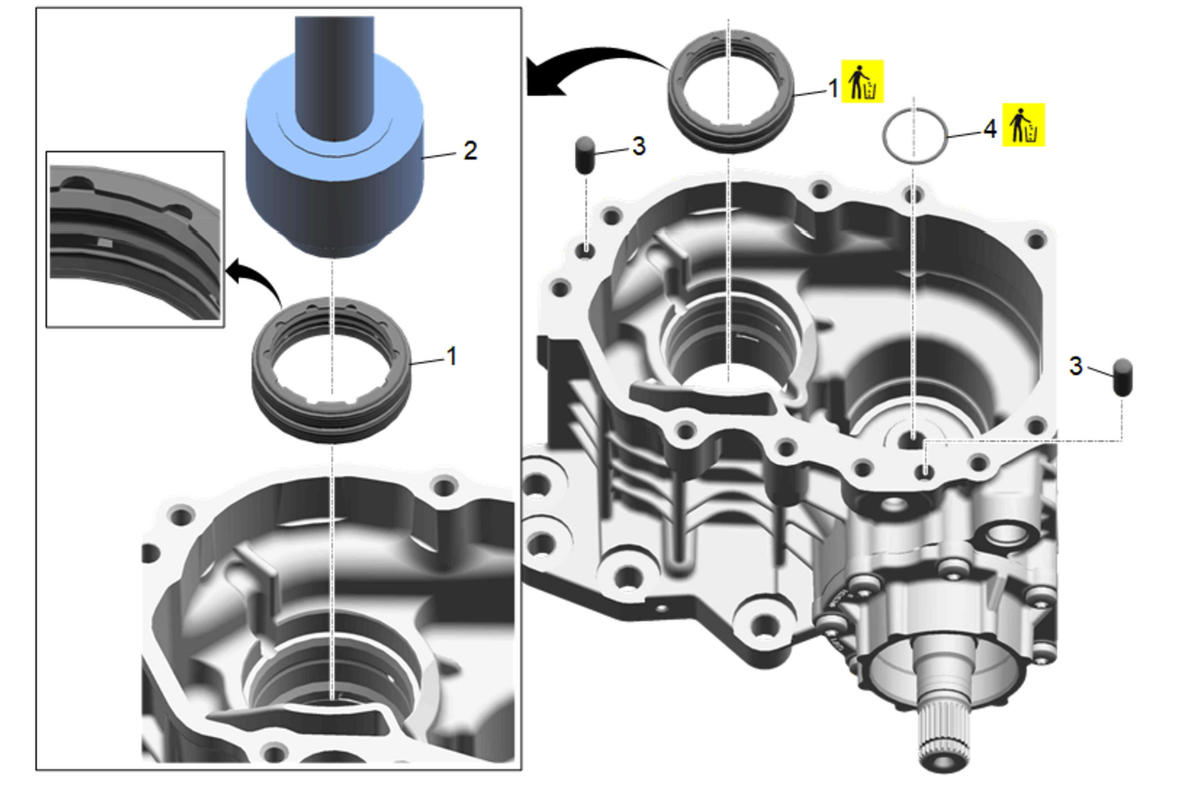

Fig 1: Exploded View Of Power Transfer Unit Alignment Sleeve, Face Seal, Input Shaft Bearing Race, Idler Gear Bearing Race and Shim, And Idler Gear Shaft Tube Seal Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit Alignment Sleeve Procedure Install a NEW sleeve during assembly. Use a press to install the sleeve. Install the sleeve with the tapered end facing away from case. Press the sleeve into the housing until it bottoms in the case half bore.
2	Power Transfer Unit Face Seal
3	Power Transfer Unit Input Shaft Seal- Front Procedure Make sure the seal bore is clean and free of oil or dirt. Install the NEW seal with the notched surface of the seal facing the DT-51466 Seal Installer with the metal ID portion of the seal facing the DT-51466 Seal Installer. Install the seal into the bore until the tool bottoms against the case half. Special Tools DT-51466 Seal Installer DT-305 - 1 Driver Handle Equivalent regional tools: Special Tools
4	Power Transfer Unit Idler Gear Shaft Bearing Race- Front Procedure The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
5	Power Transfer Unit Idler Gear Shaft Access Tube O-ring- Front
6	Power Transfer Unit Idler Gear Shaft Bearing Race Shim- Front NOTE: The position of the shim for assembly.
7	Power Transfer Unit Idler Gear Shaft Bearing Race- Front Procedure The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
8	Power Transfer Unit Locating Pin [2x] NOTE: Install the locating pins as required.
