Instrument Panel Lower Airbag Replacement - Driver Side (AYF)

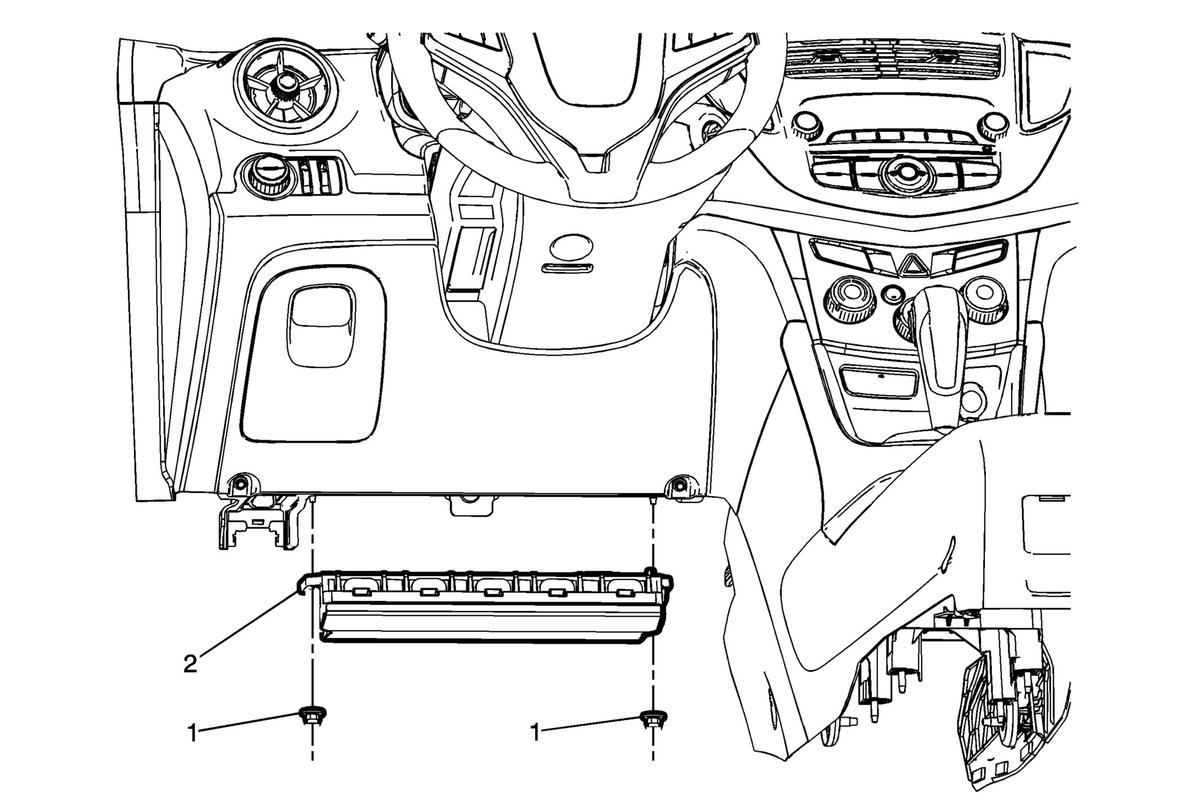

GM2885123

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Buick)Instrument Panel Knee Bolster Replacement (Chevrolet) .

1

Inflatable Restraint Instrument Panel Lower Module Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Inflatable Restraint Instrument Panel Lower Module Assembly - Driver Side

Procedure

Disconnect the electrical connector.
Refer to Inflatable Restraint Module Handling and Scrapping .
Enable the SIR system. Refer to SIR Disabling and Enabling .
