Floor Front Air Outlet Duct Replacement - Left Side (Chevrolet)

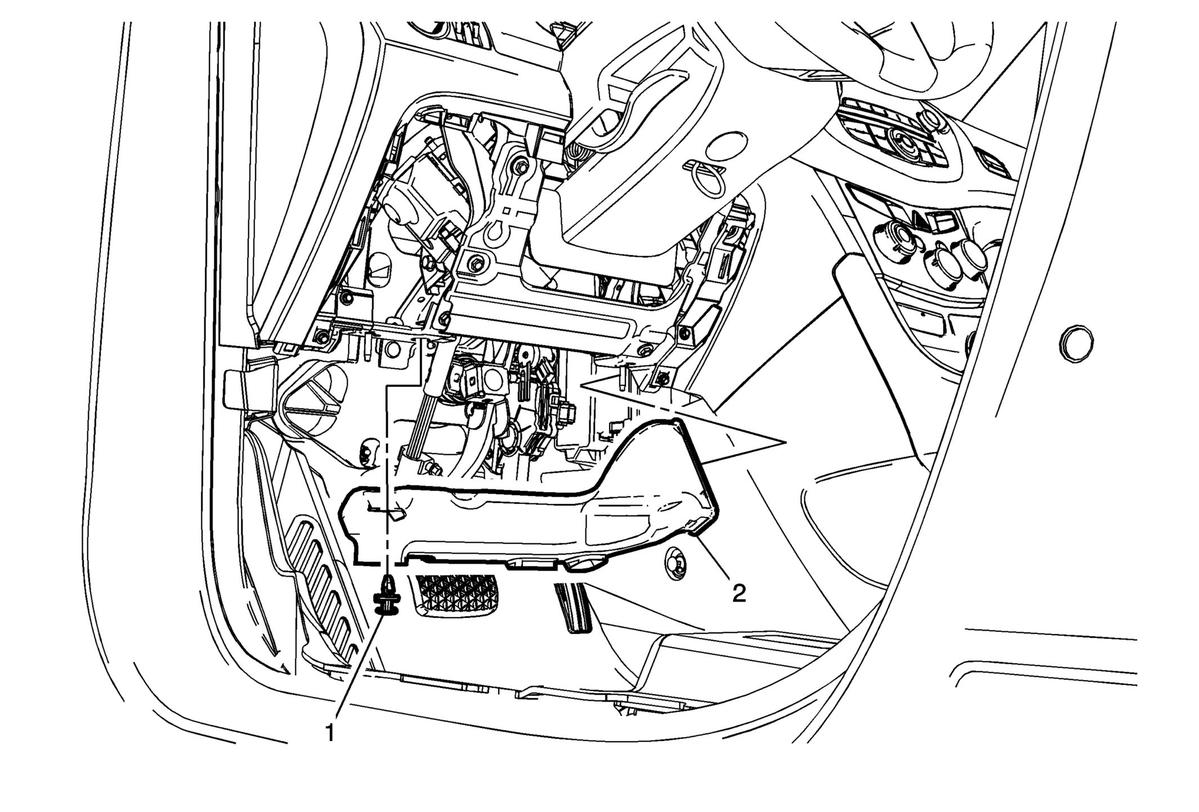

GM3395429
Callout Component Name
Preliminary Procedure
Remove the Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement (Buick)Instrument Panel Knee Bolster Replacement (Chevrolet) .
1 Floor Air Outlet Duct Fastener
2 Floor Air Outlet Duct - Left Side
