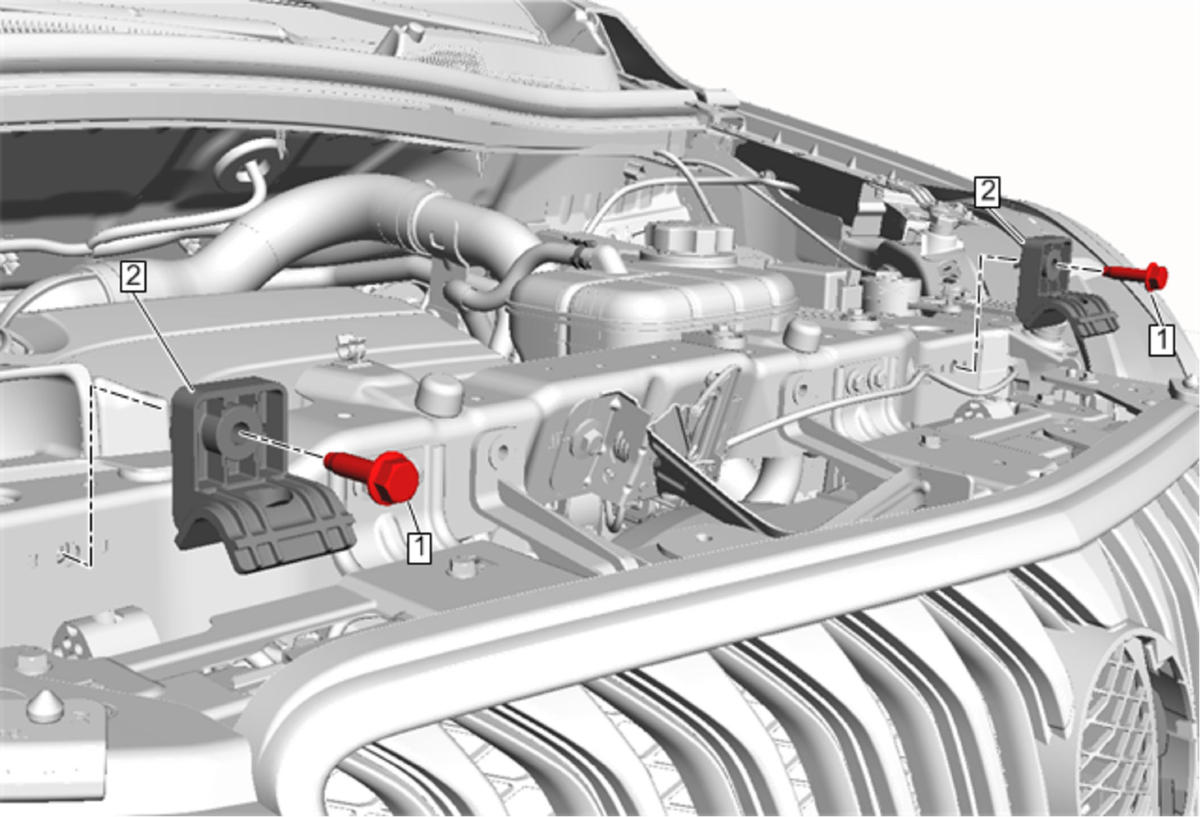

Radiator Upper Bracket Replacement (LE2)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Opening Upper Cover Replacement |
|
| 1 | Radiator Upper Mount Bracket Bolt(2)
CAUTION:
Refer to Fastener Caution . Tighten 18 N.m (13 lb ft) |
| 2 | Radiator Upper Bracket(2) |
