Radiator Upper Bracket Replacement (2H0)

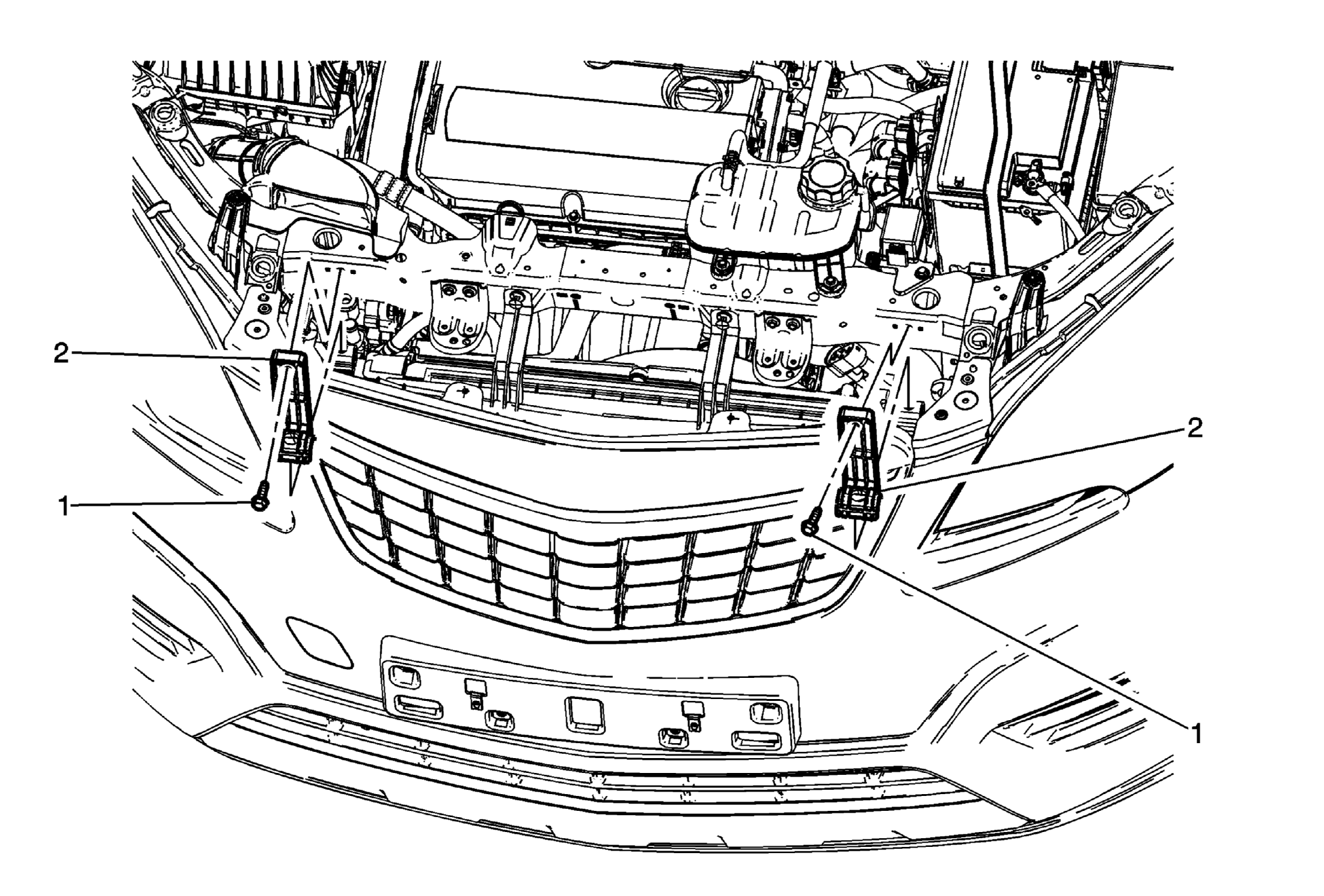

GM2809483
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement .
1 Radiator Upper Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
18 N.m (13 lb ft)
2 Radiator Upper Bracket (Qty: 2)
