Preliminary Procedures
- It is only necessary to loosen the part. Only do those steps in the quarter lower rear trim panel procedure that will allow access to the component being removed. Quarter Lower Rear Trim Panel Replacement
- It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (Without Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Chevrolet)Headlining Trim Panel Replacement (Without Sunroof, Chevrolet)
|
| 1 |

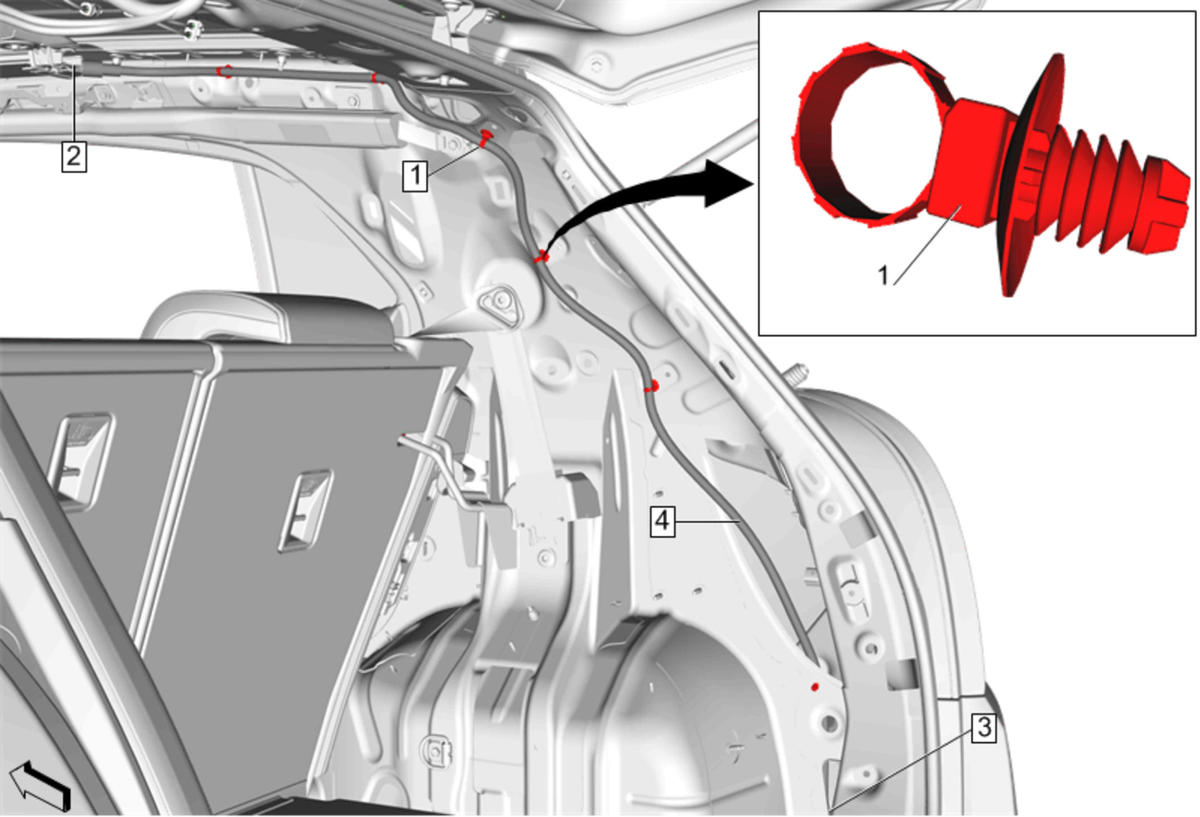

Sunroof Housing Rear Drain Hose Retainer [6x] |
| 2 |
Sunroof Housing Rear Drain Hose to Sunroof Frame Spigot
Procedure
Disconnect the sunroof drain hose from the sunroof frame spigot. |
| 3 |
Sunroof Housing Rear Drain Hose Grommet
NOTE:
Grasp the grommet and pull rearward to release it from the quarter panel.
|
| 4 |
Sunroof Housing Rear Drain Hose Procedure
- Ensure the drain hose and grommet are installed through the access hole in the quarter panel to prevent rear compartment water leaks.
- Install the retainers that secure the drain hose to the upper sill panel and rear compartment.
- Water test the sunroof before installing trim.
|
