Rear Seat Back Cushion Removal and Installation (60%)

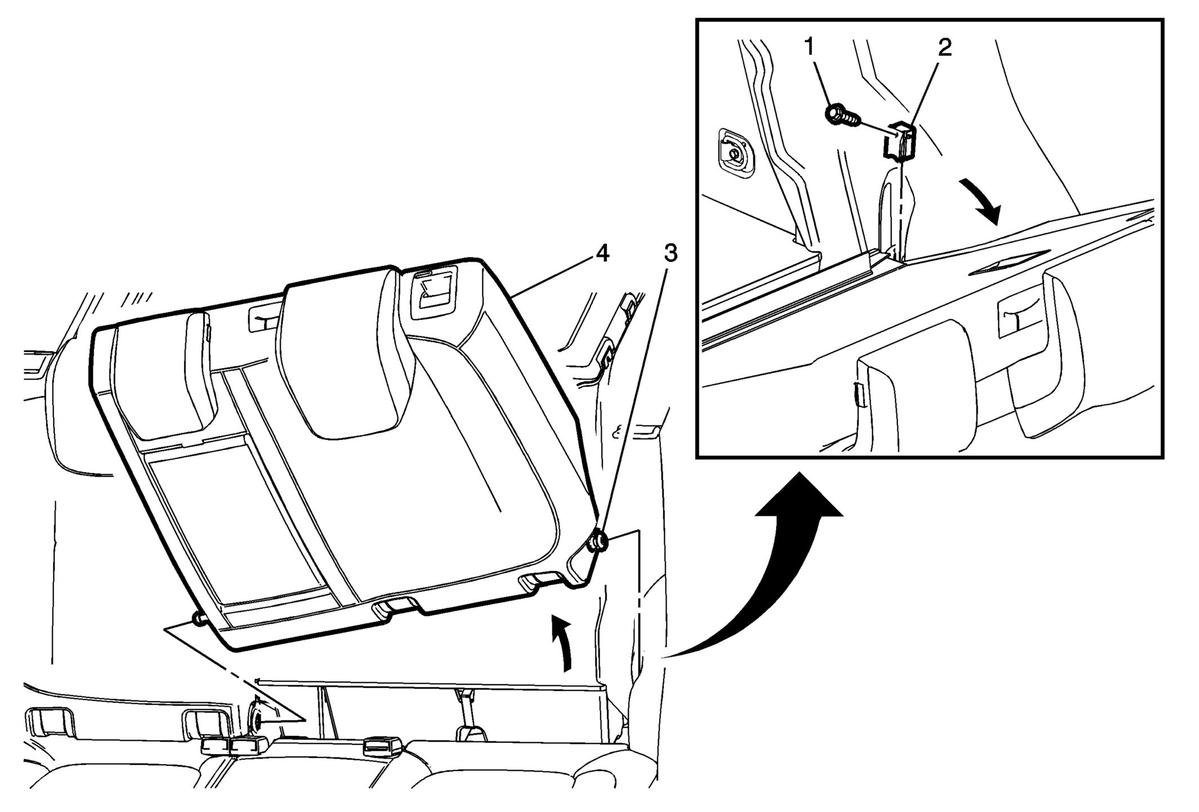

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion (40%). Refer to Rear Seat Back Cushion Removal and Installation (40%) . Remove the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement (AYF) . Remove the rear seat center shoulder belt retractor nut from the floor. Refer to Rear Center Seat Belt Retractor Replacement .
1	Rear Seat Back Cushion Hinge Stop Fastener CAUTION: Refer to Fastener Caution . Procedure Pull the rear seat back cushion latch release handle located on the top of the rear seat back cushion, and fold the rear seat back cushion forward to gain access to the screw. Tighten 3 N.m (26 in lb)
2	Rear Seat Back Cushion Hinge Stop Procedure Remove the hinge stop.
3	Rear Seat Back Cushion Pivot Support Procedure Remove the rear outboard shoulder belt from the shoulder belt bezel, release the buckles from the elastic retaining straps and position it out of the way. Push in on the rear seat back cushion pivot support, and release from bracket.
4	Rear Seat Back Cushion Procedure Pull up on the outer side of the rear seat back cushion and remove the rear seat back cushion from the bracket and hinge. Transfer components as necessary.
