Rear Seat Back Cushion Cover and Pad Replacement (40%)

Preliminary Procedures

1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40%) .
2. Remove the rear seat head restraint guide. Refer to Rear Seat Head Restraint Guide Replacement .
3. Remove the rear seat back cushion latch release handle bezel. Refer to Rear Seat Back Latch Release Handle Bezel Replacement
4. Remove the child seat bracket access hole cover. Refer to Child Seat Bracket Access Hole Cover Replacement
5. Remove the rear seat back cushion pivot support. Refer to Rear Seat Back Cushion Pivot Support Replacement .

Procedure

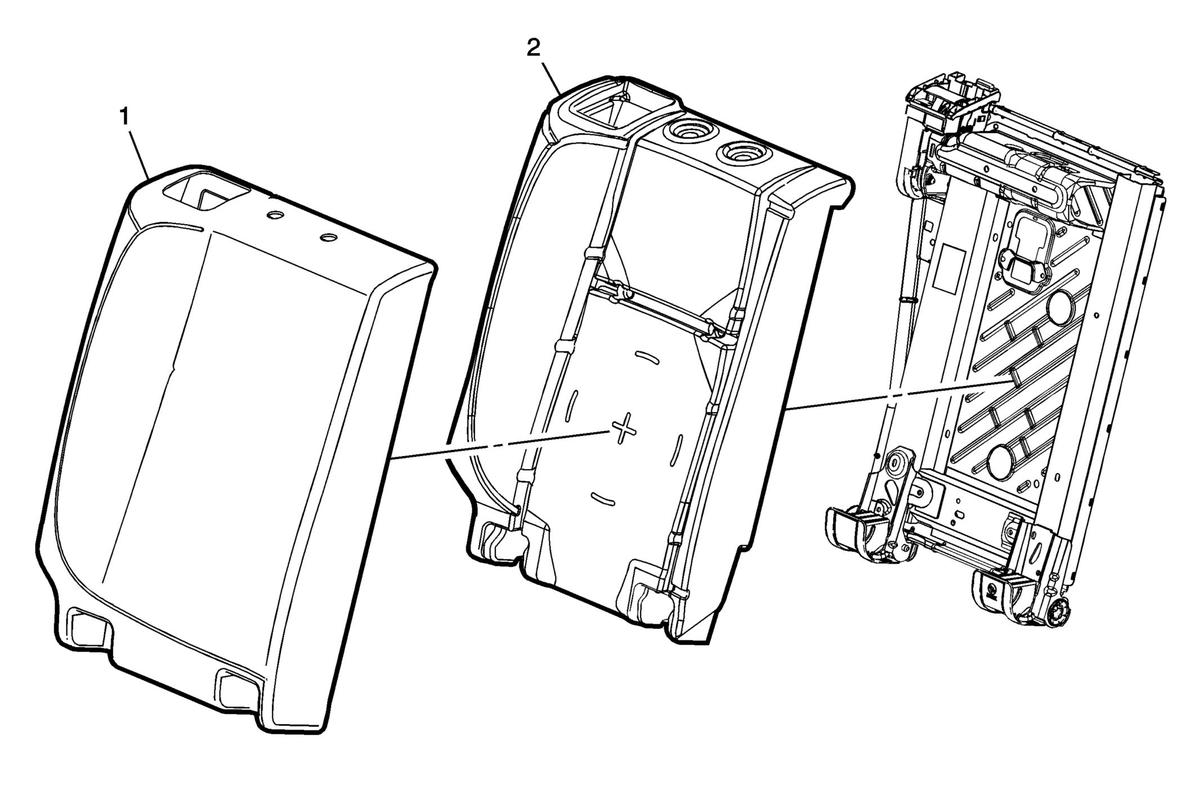

1. Disengage the J-channel retainers from the seat back cushion frame.
2. Remove the hog rings from the under side of the rear seat back cushion cover.
3. Pull the cover away from the pad to disengage the hook and loop retainers.
4. If replacing the seat back panel, transfer components as necessary.
