Rear Seat Back Cushion Carpet Replacement (40%)

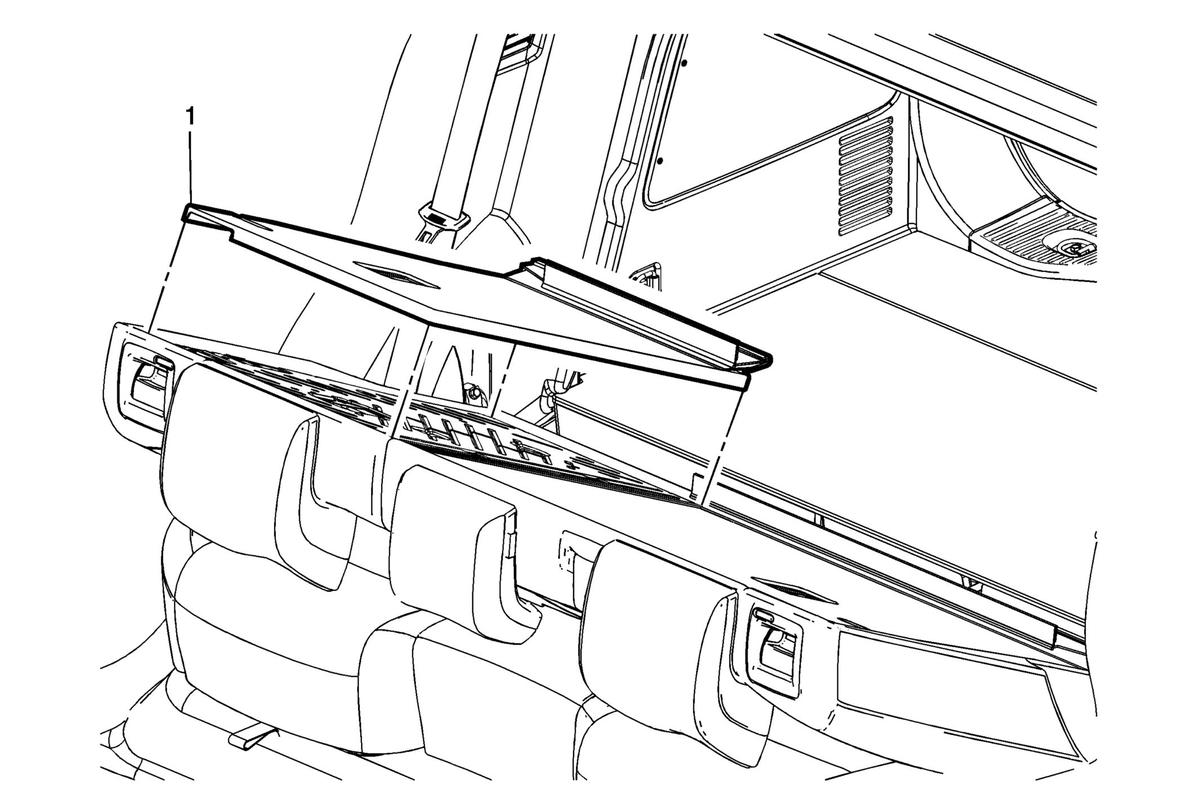

GM2777916
Callout Component Name
Preliminary Procedure
Remove the child seat bracket access hole cover. Refer to Child Seat Bracket Access Hole Cover Replacement .
1 Rear Seat Back Cushion Carpet

Procedure

  1. Fold rear seat back cushion forward.
  2. Disengage the j-channel retainers from the seat back cushion frame.
  3. Remove rear seat back cushion carpet.
