Instrument Panel Knee Bolster Outer Bracket Replacement

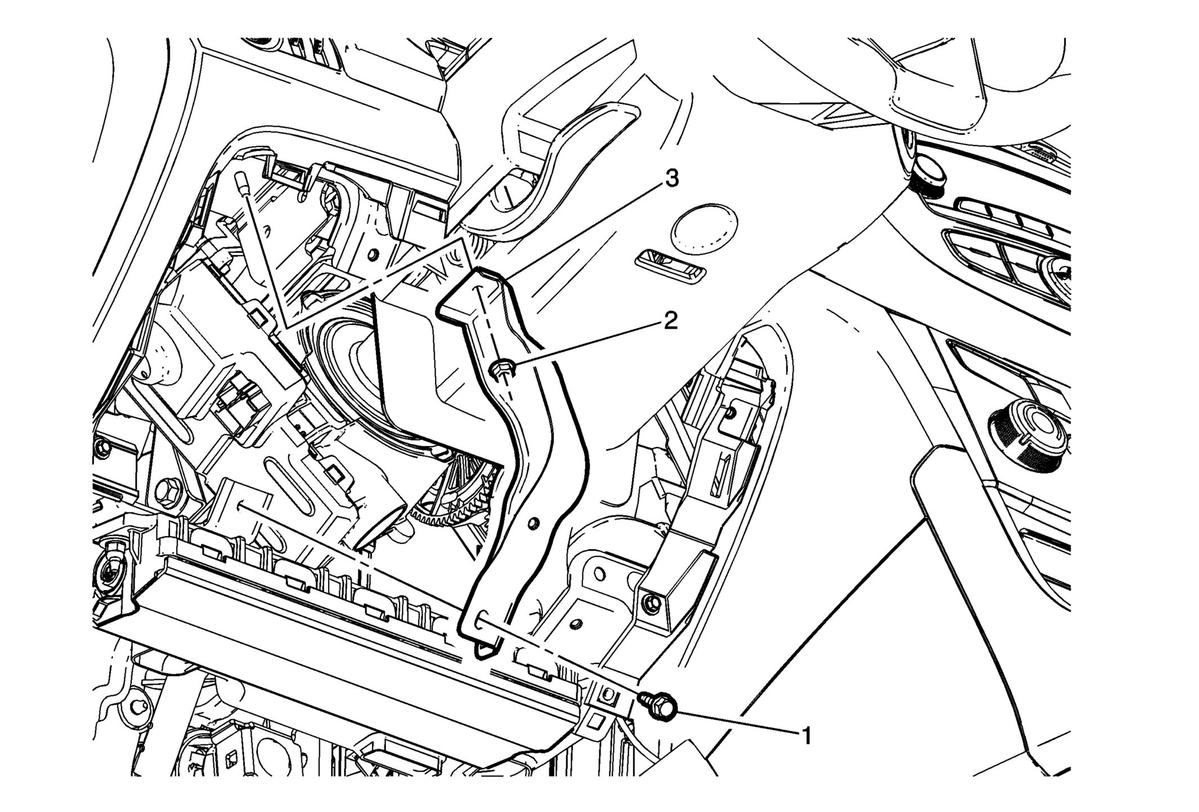

Callout	Component Name
Preliminary Procedures  Remove the instrument panel knee bolster inner bracket. Refer to Instrument Panel Knee Bolster Inner Bracket Replacement .
1	Instrument Panel Knee Bolster Outer Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Instrument Panel Knee Bolster Outer Bracket Nut Tighten  9 N.m (80 lb in)
3	Instrument Panel Knee Bolster Outer Bracket
