Rear Body Structure Stop Lamp Replacement (Buick with UGE)

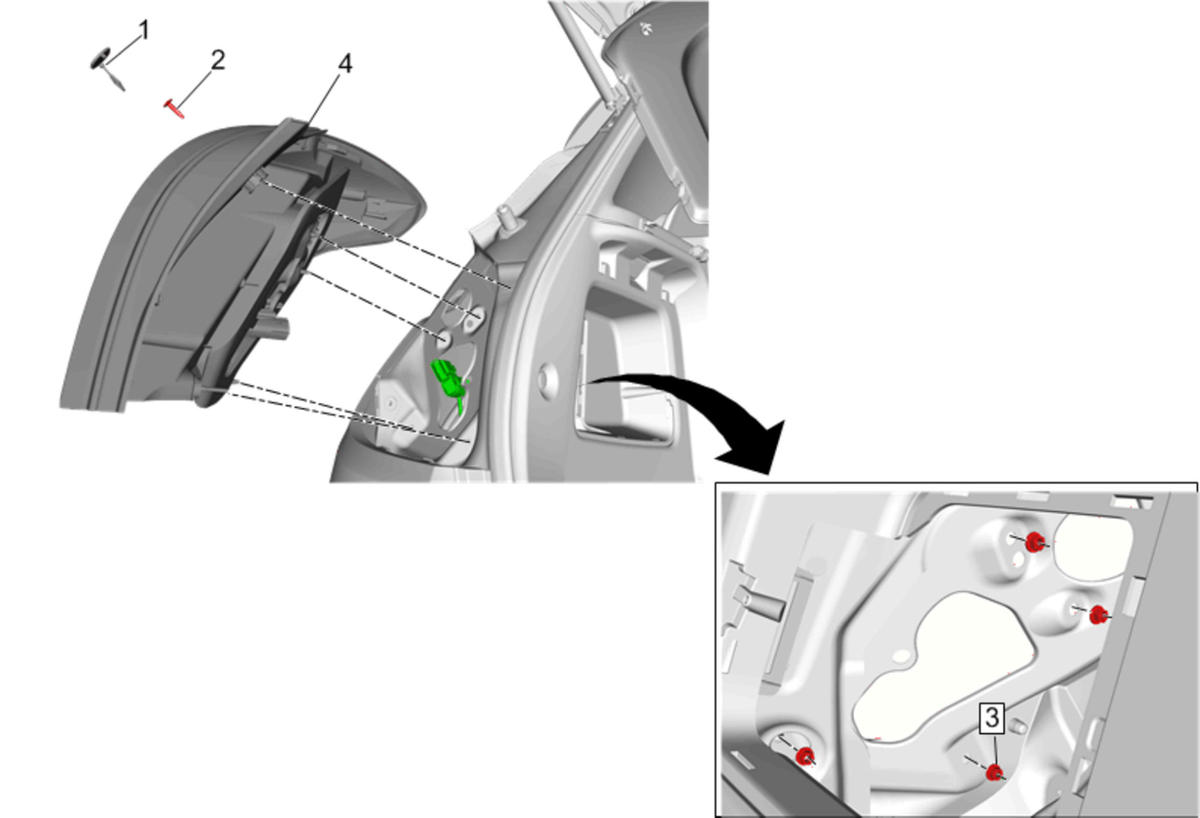

Callout	Component Name
Preliminary Procedures Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) Disconnect the electrical connectors.
1	Rear Body Structure Stop Lamp Cap
2	Rear Body Structure Stop Lamp Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Body Structure Stop Lamp Nut [4x] Tighten 4.7 N.m (42 lb in)
4	Rear Body Structure Stop Lamp Procedure Carefully pull the lamp rearward in order to disengage the locator pins from the body side outer panel.
