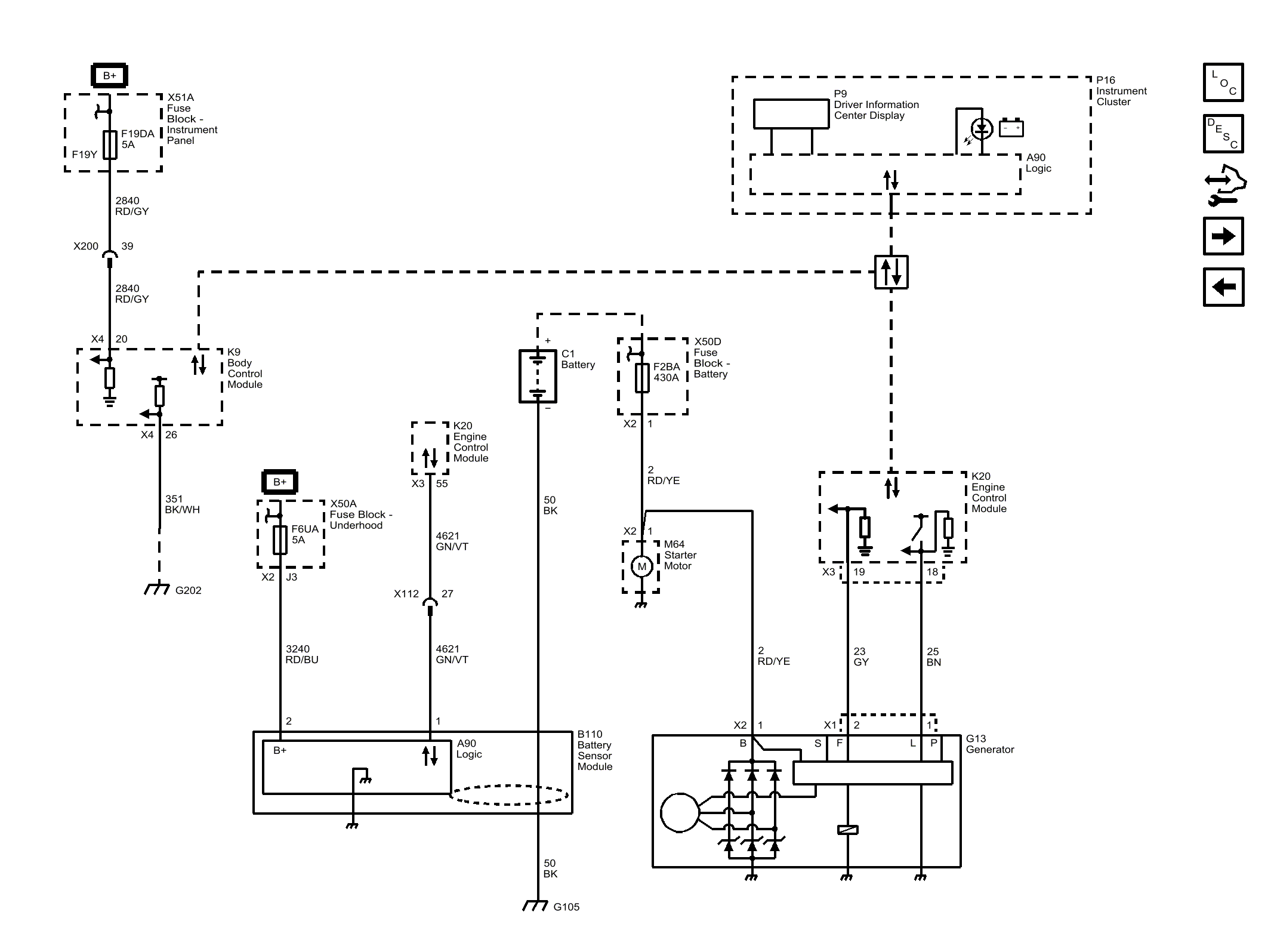

Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Starter >> 12 V Starting And Charging System >> Schematic Wiring Diagrams >> Starting and Charging Wiring Schematics (Buick with LE2) >> Charging (Buick with LE2)
