Intake Valve Stem Oil Seal Installation Cylinder 1

Install the NEW intake valve stem oil seals of cylinder 1, using the EN-958  installer (1).

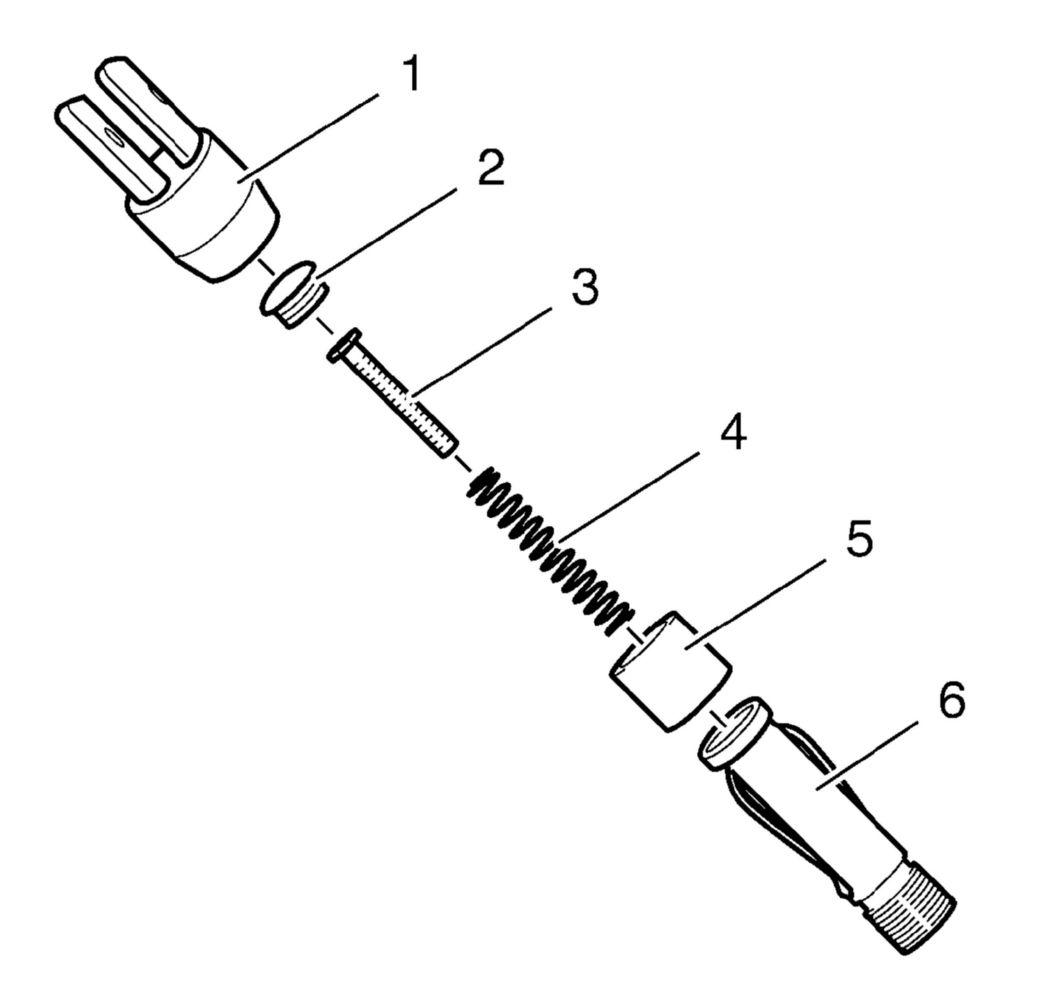

Prepare the EN-6086 - 200 - 1  mounting piece for the valve key installation. The mounting piece must be assembled in the following order:

1. Support (6)
2. Bushing (5)
3. Spring (4)
4. EN-6086 - 200 - 10  plunger (3)
5. Screw Connection (2)
6. Lever Adapter (1)

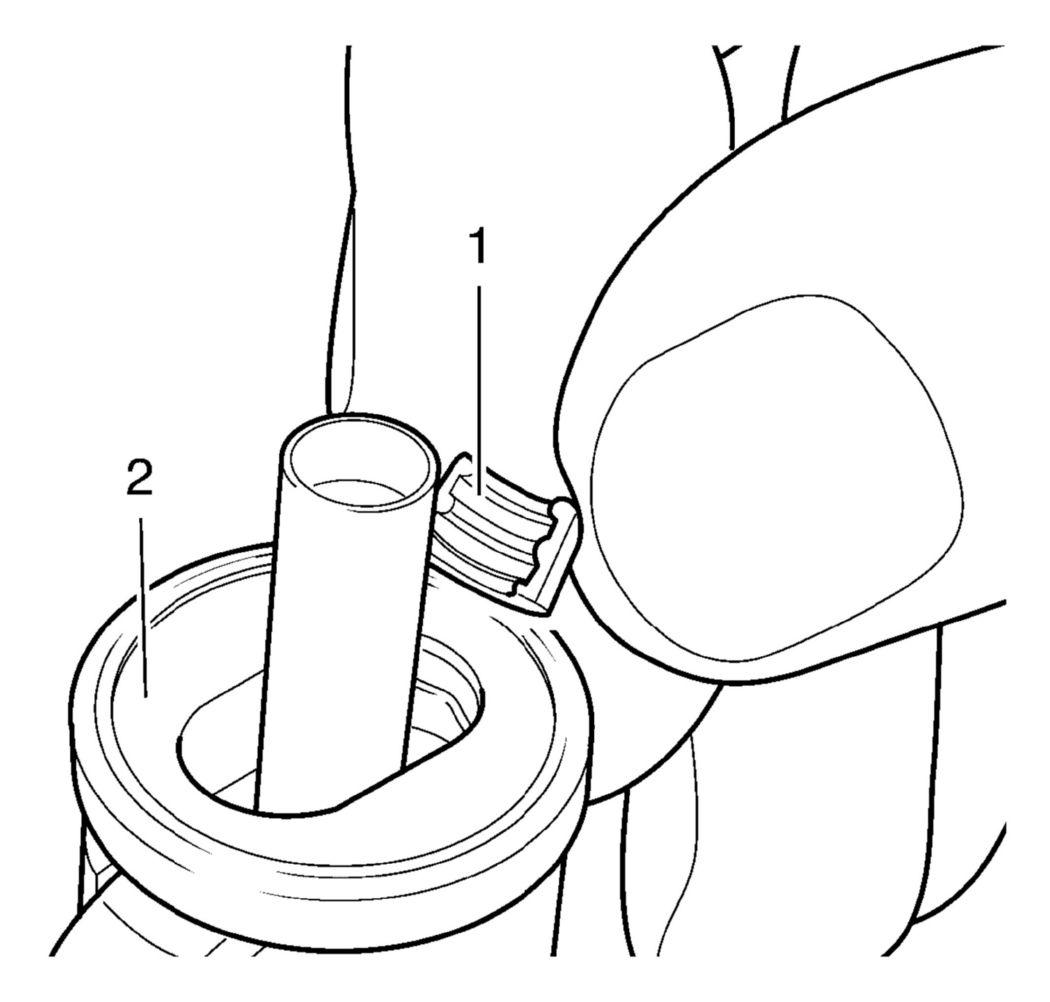

Install the valve keys (1) to the mounting piece (2) and fix them with the bushing.

Install the intake valve springs, the intake valve spring retainers and the intake valve keys, using the following procedure:

1. Replace the EN-6086 - 11  demounting piece with the assembled EN-6086 - 200 - 1  mounting piece (1).
2. Install the intake valve springs and the intake valve spring retainers to the cylinder head.
CAUTION:

The demounting piece part of EN-6086 Basic Kit, Spring and Wedge Replacer must be applied parallel to the valve retainers in order to prevent damage to the tools or the valve train components. If demounting piece is not applied parallel it could cause damage to the valve stem keys or the valve retainers.

NOTE:

The cone side of the valve keys must point to the valve stem.

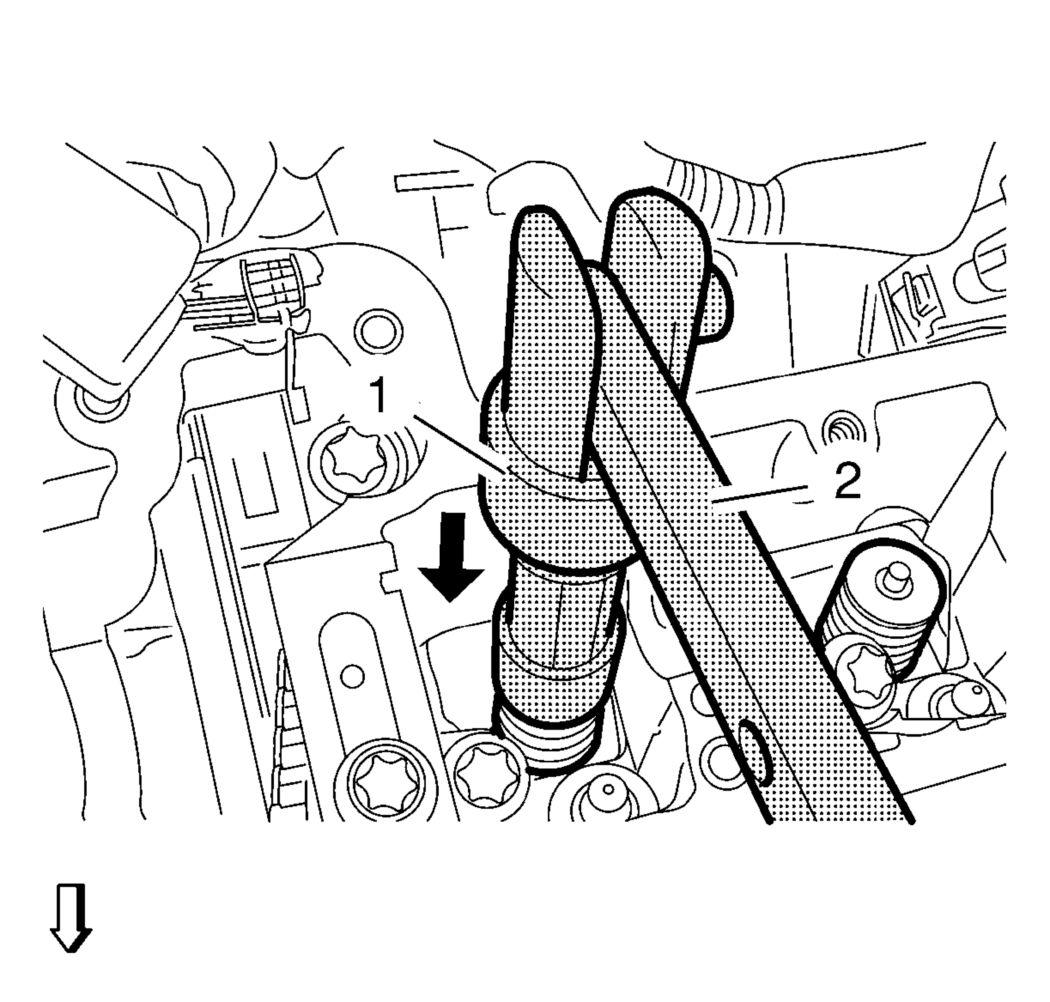

3. Push down the mounting piece (1) using the lever (2) until the valve keys are hearable engaged.

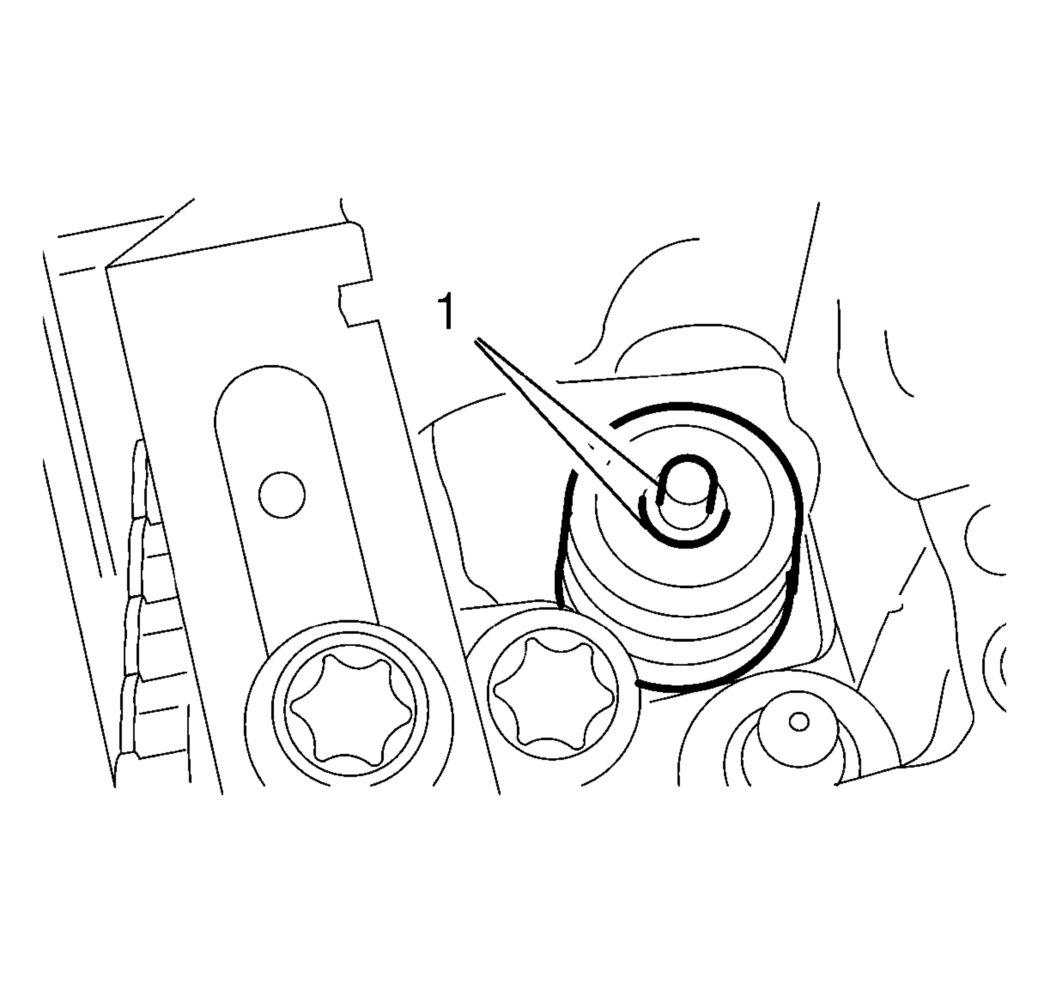

4. Inspect the intake valve keys (1) for proper seat.
