Removal Procedure

  1. Remove the flex plate. Refer to Automatic Transmission Flex Plate Replacement .

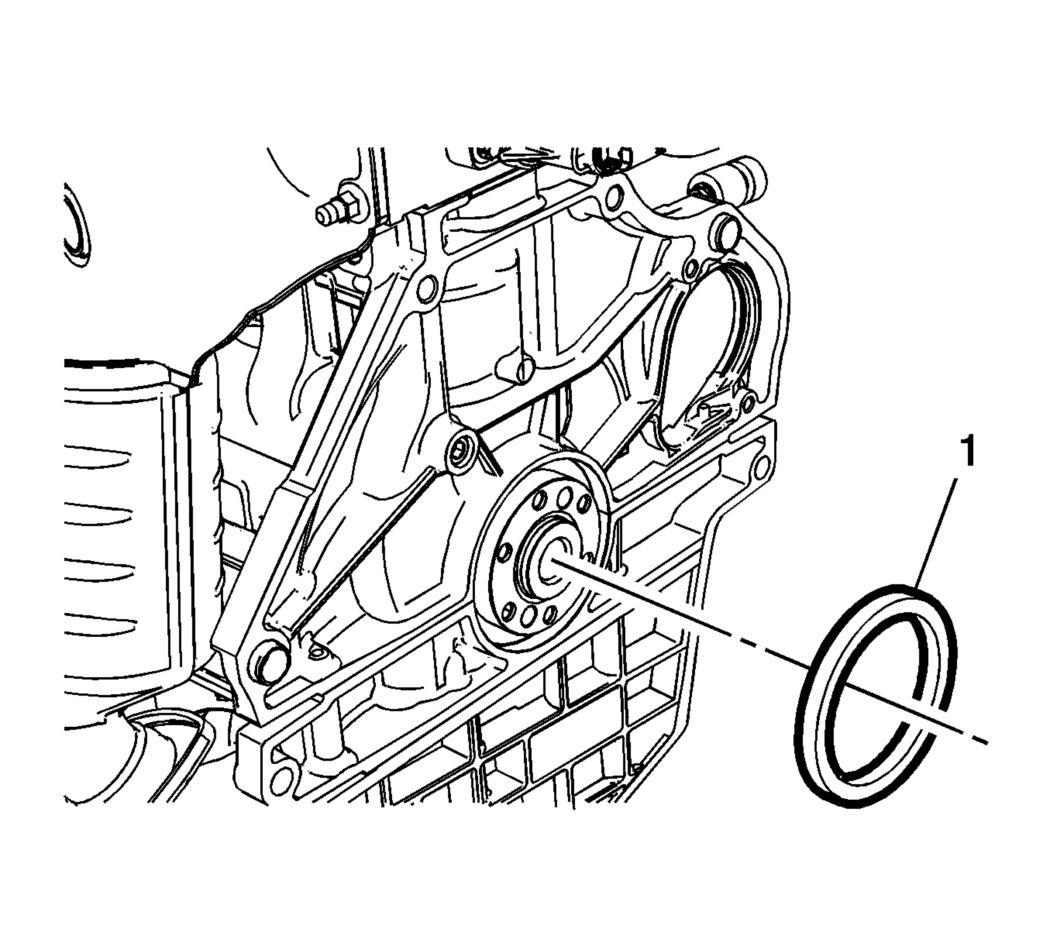

  2. GM2399622
    NOTE:

    Do not damage the outside diameter of the crankshaft or chamber with any tool.

    Using a flat-bladed tool, remove the rear crankshaft oil seal (1).
