Drive Belt Tensioner Removal

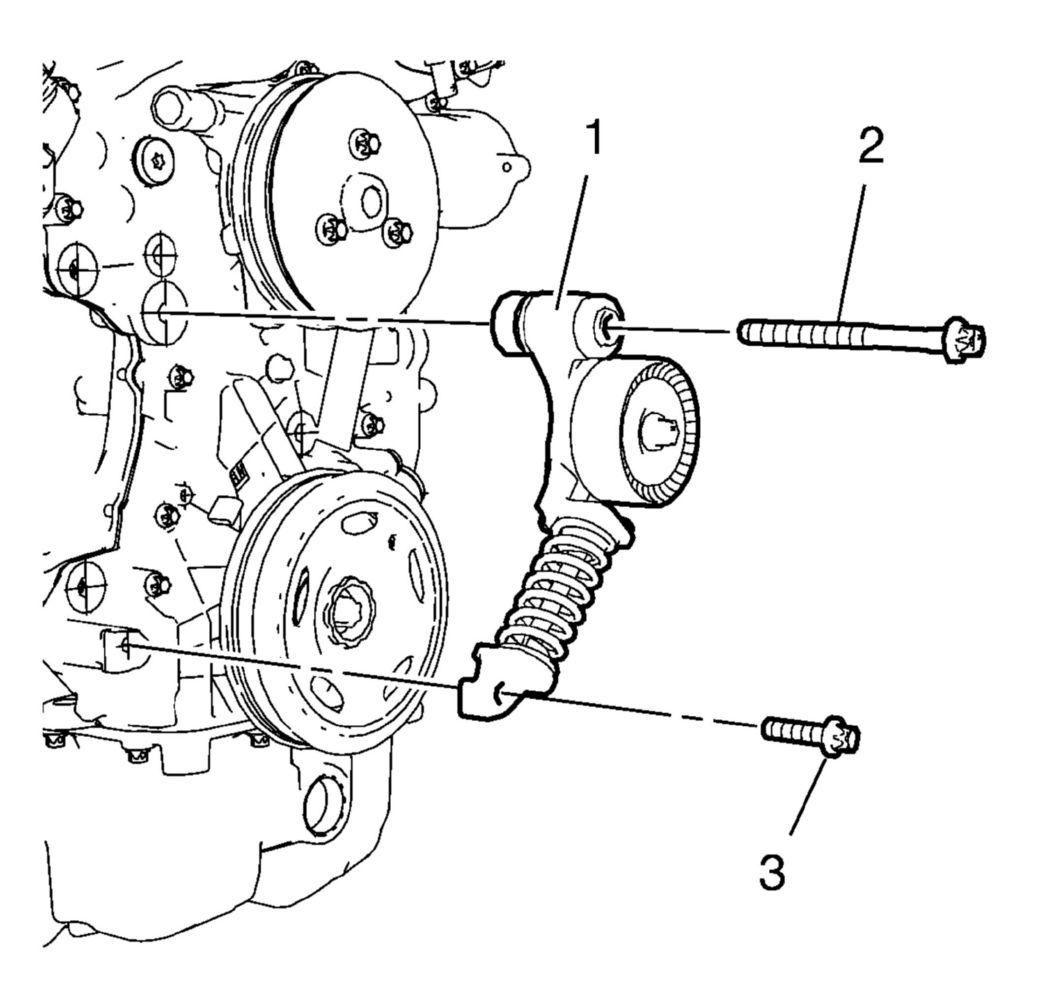

  1. GM2190385
    CAUTION:

    The drive belt tensioner must always be in a pre-tensioned state and must never be free from tension. If the drive belt tensioner is free from the belt tension, it must always stay fixed with an appropriate locking pin. Failure to follow this instruction will lead to a damage of the drive belt tensioner.

    Remove the upper drive belt tensioner bolt (2).

  2. Remove the lower drive belt tensioner bolt (3).
  3. Remove the drive belt tensioner (1).
