Camshaft Sprocket Removal

  1. GM2190719

    Loosen the intake camshaft sprocket bolt (1) while holding the hexagon of intake camshaft (2) with a wrench.

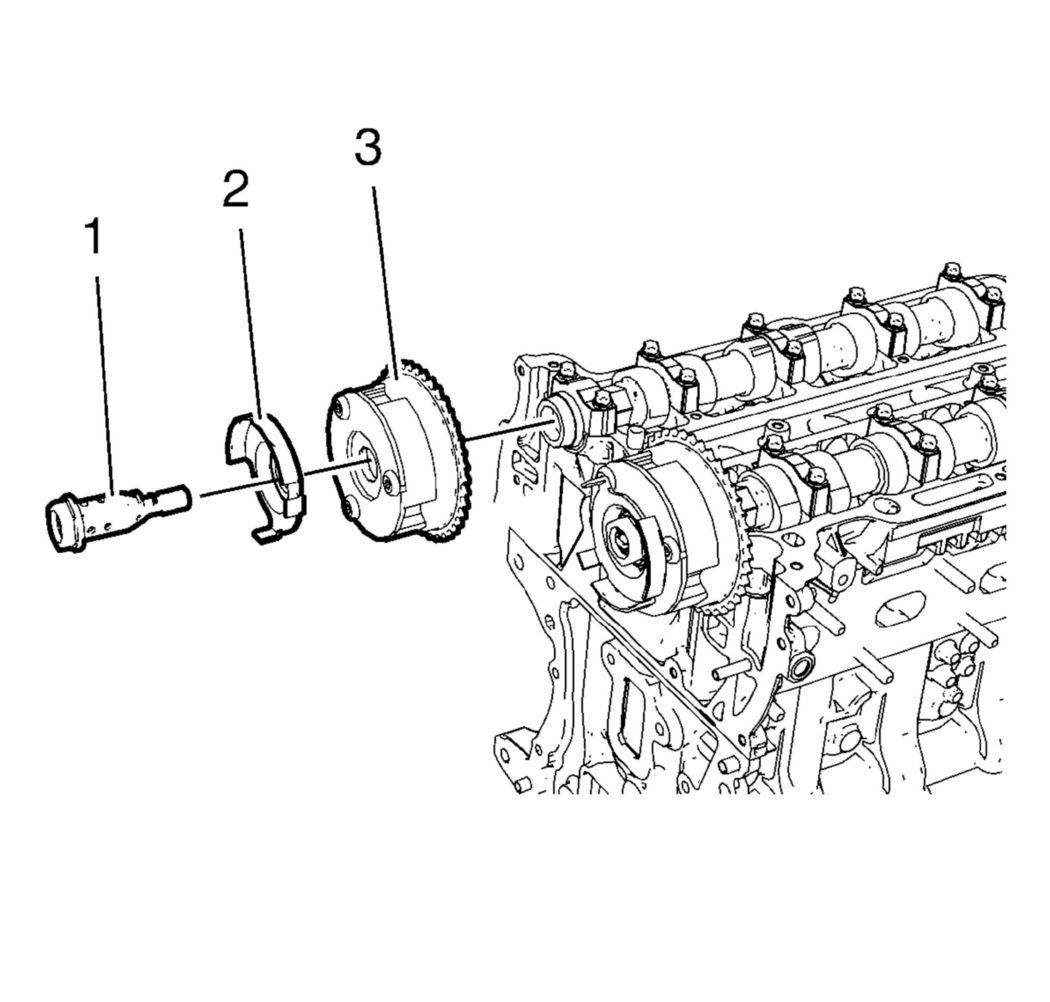

  2. GM2190718

    Remove the intake camshaft sprocket bolt (1) and the intake camshaft position exciter wheel (2).

  3. Remove the intake camshaft sprocket (3).
  4. Loosen the exhaust camshaft sprocket bolt while holding the hexagon of exhaust camshaft with a wrench.
  5. Remove the exhaust camshaft sprocket bolt and the exhaust camshaft position exciter wheel.
  6. Remove the exhaust camshaft sprocket.
