Camshaft Position Actuator Solenoid Valve Removal

  1. GM2191735

    Remove the 4 camshaft position actuator solenoid valve bolts (1).

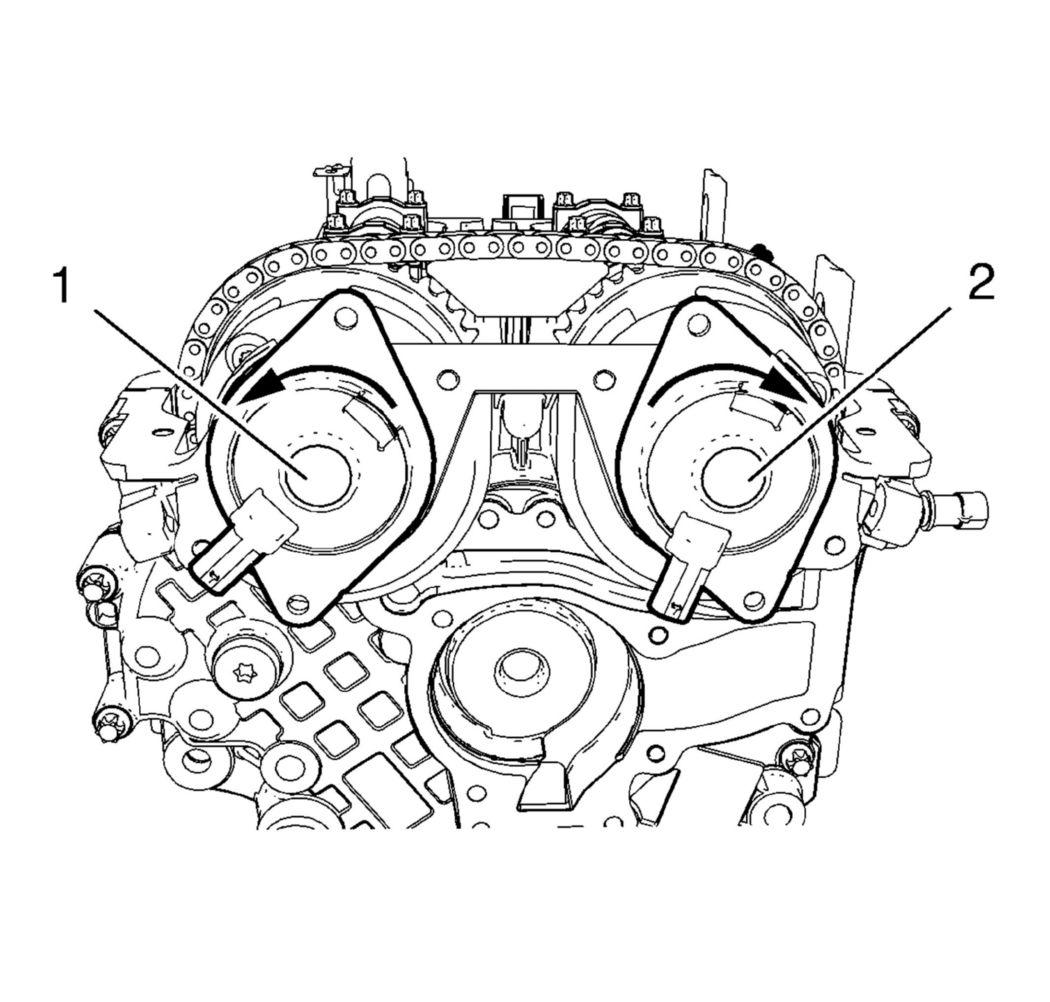

  2. GM2191733

    Move the intake camshaft position actuator solenoid valve (1) carefully counter clockwise in the position shown.

  3. Move the exhaust camshaft position actuator solenoid valve (2) carefully clockwise in the position shown.
  4. GM2190650
    CAUTION:

    The camshaft position actuator solenoid valves must be kept parallel to the engine front cover during removal and installation. The camshaft position actuator solenoid valves can be damaged if they become wedged or stuck during this process.

    Carefully remove the 2 camshaft position actuator solenoid valves (2) and the seal rings (1).
