Camshaft Position Actuator Solenoid Valve Installation

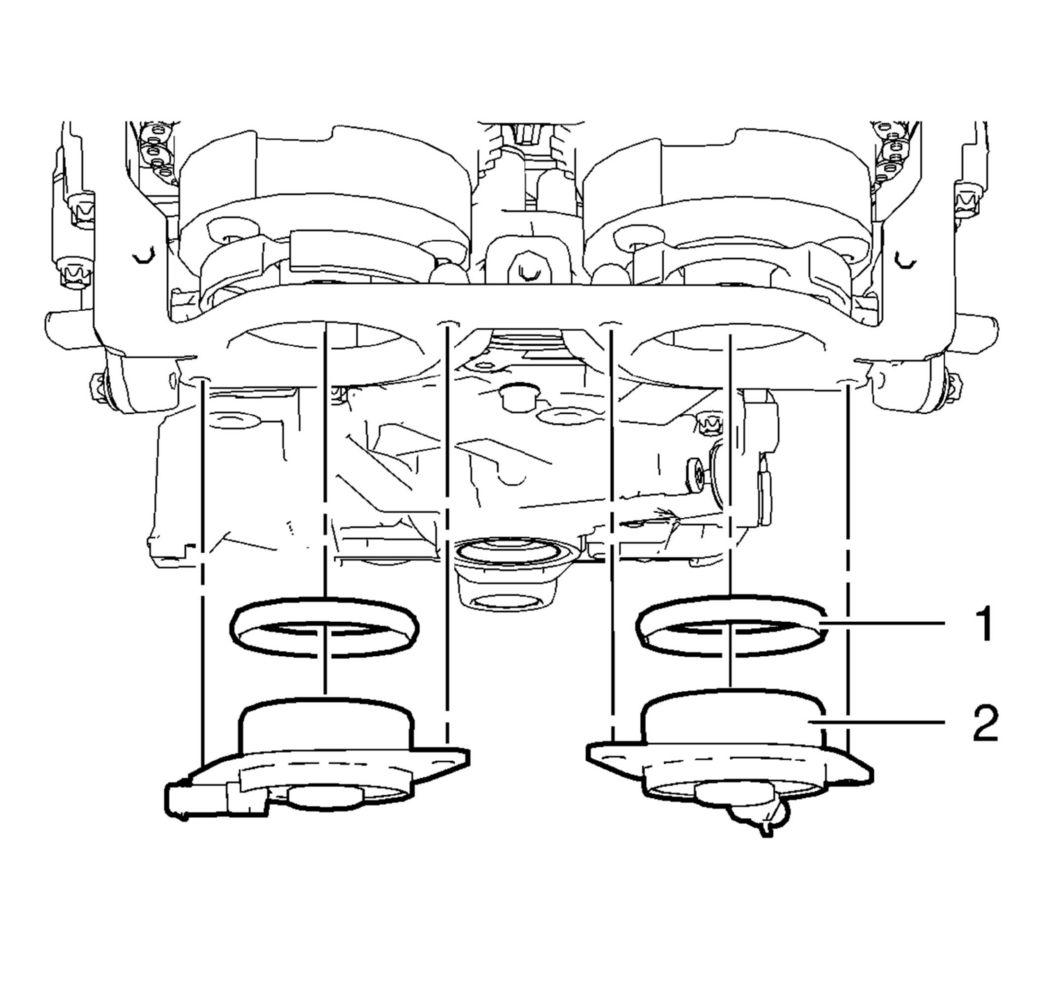

  1. GM2190650
    CAUTION:

    The camshaft position actuator solenoid valves must be kept parallel to the engine front cover during removal and installation. The camshaft position actuator solenoid valves can be damaged if they become wedged or stuck during this process.

    Install the 2 camshaft position actuator solenoid valves (2) and the 2 seal rings (1) by carefully and evenly pressing.

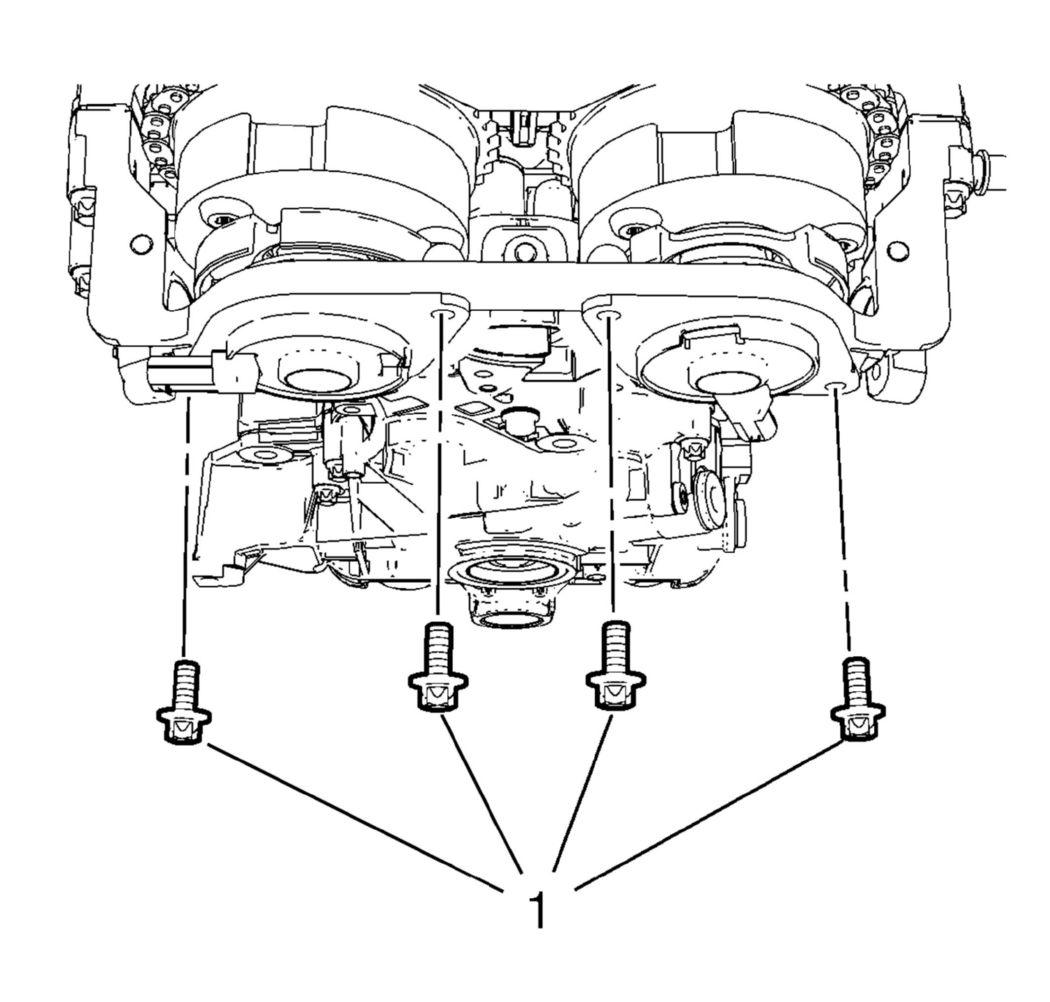

  2. GM2191735
    CAUTION:

    Refer to Fastener Caution

    Install the 4 camshaft position actuator solenoid valve bolts (1) and tighten to 8 N.m (71 lb in).

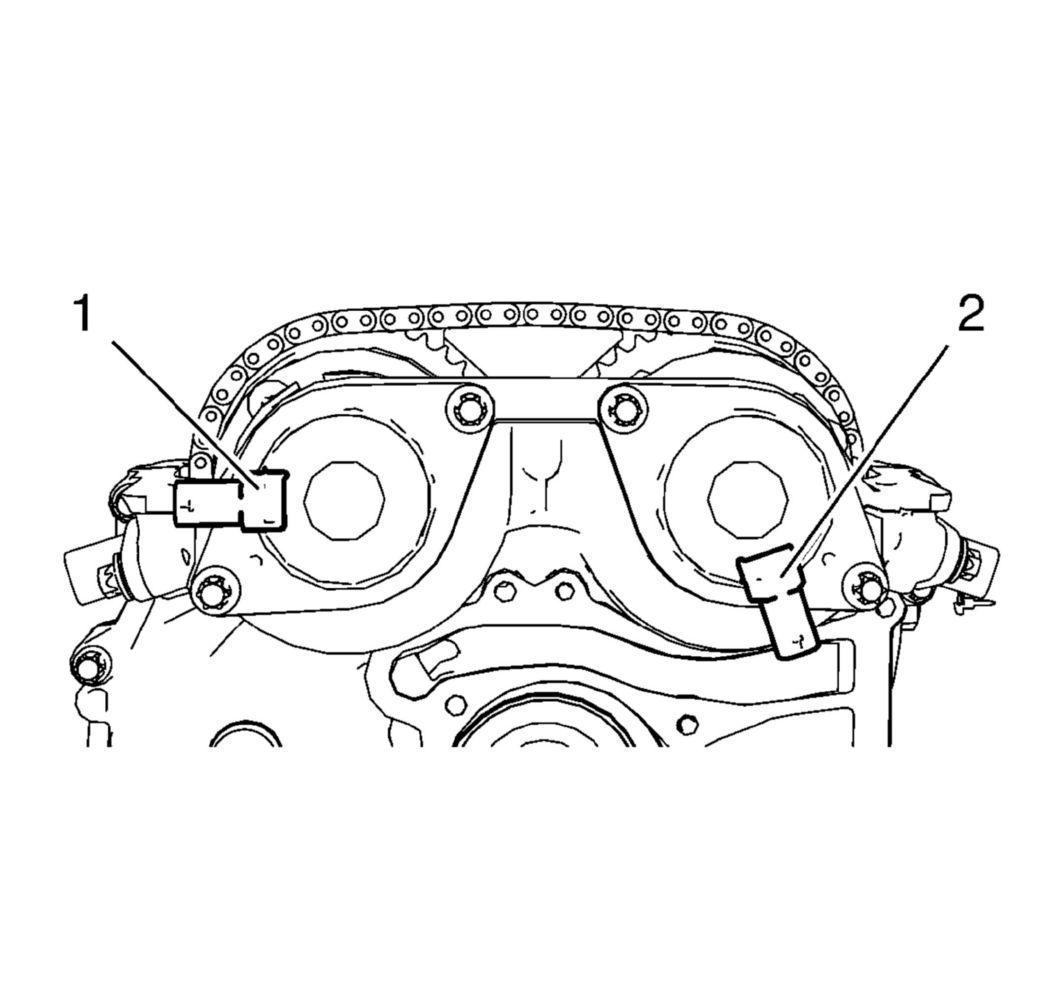

  3. GM2190651

    The 2 camshaft position actuator solenoid valves should be installed in the position as shown (1) and (2).
