Wiring Harness Routing And Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics (Trax)
>>

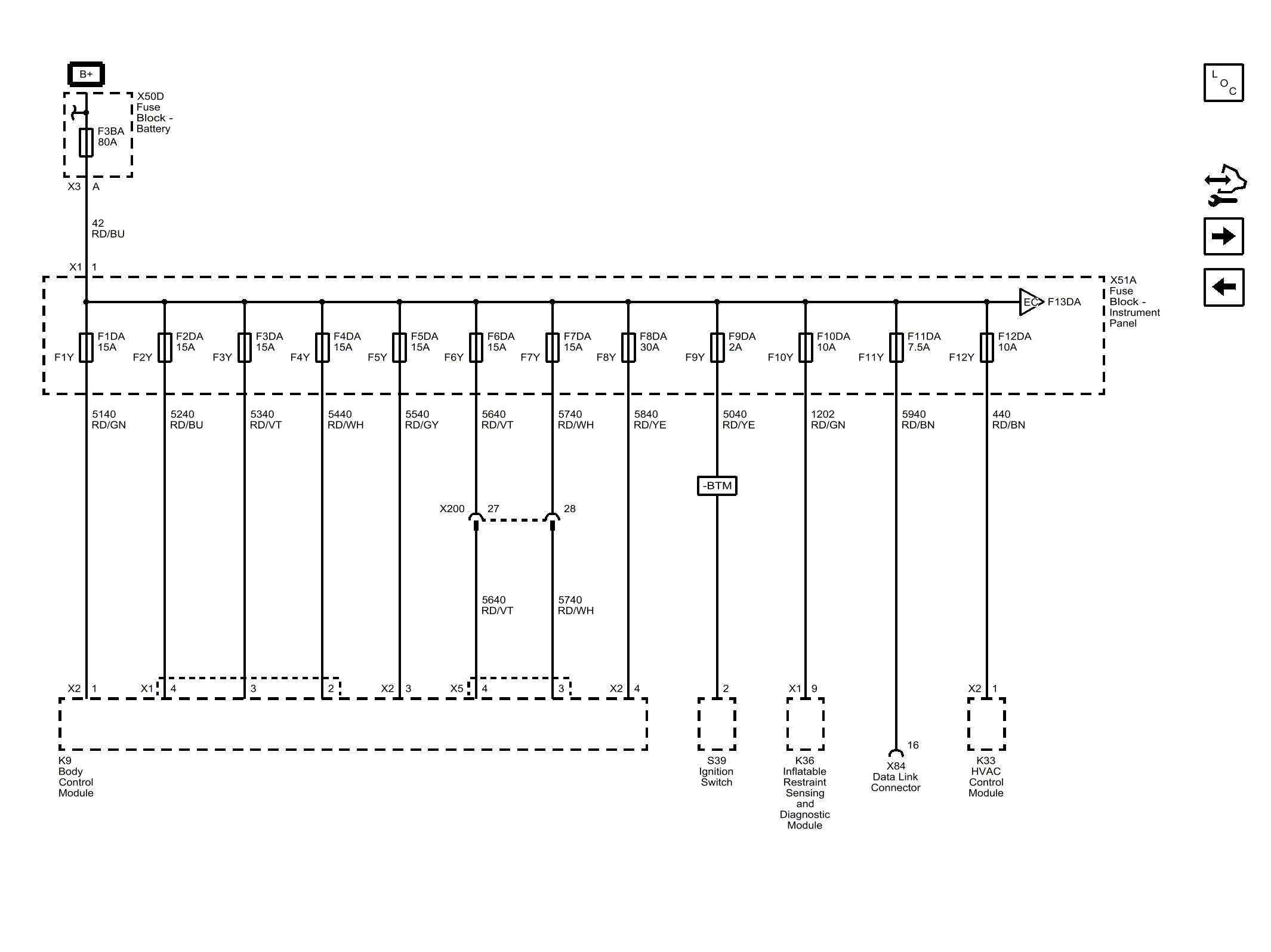

F3BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, and F12DA (Trax)
F3BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, and F12DA (Trax)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
