Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Power Distribution Wiring Schematics (Buick) >> F5DB, F21DA, F22DA, F25DA, F29DA, F31DA, and F32DA Fuses (Buick)

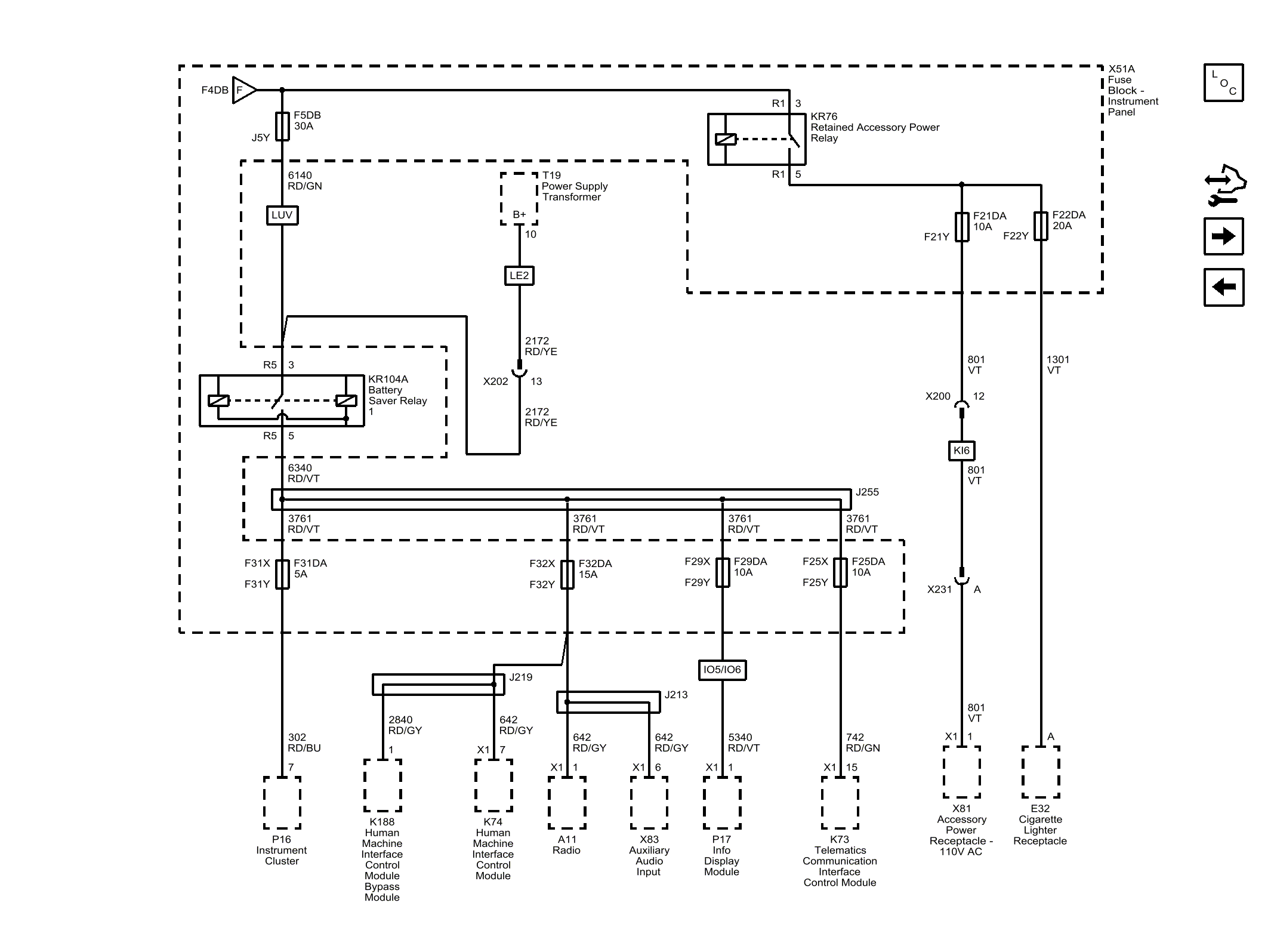

F5DB, F21DA, F22DA, F25DA, F29DA, F31DA, and F32DA Fuses (Buick)

GM4704629
