Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics (Chevrolet) >> Power, Ground, Serial Data, and Gauges (Chevrolet)

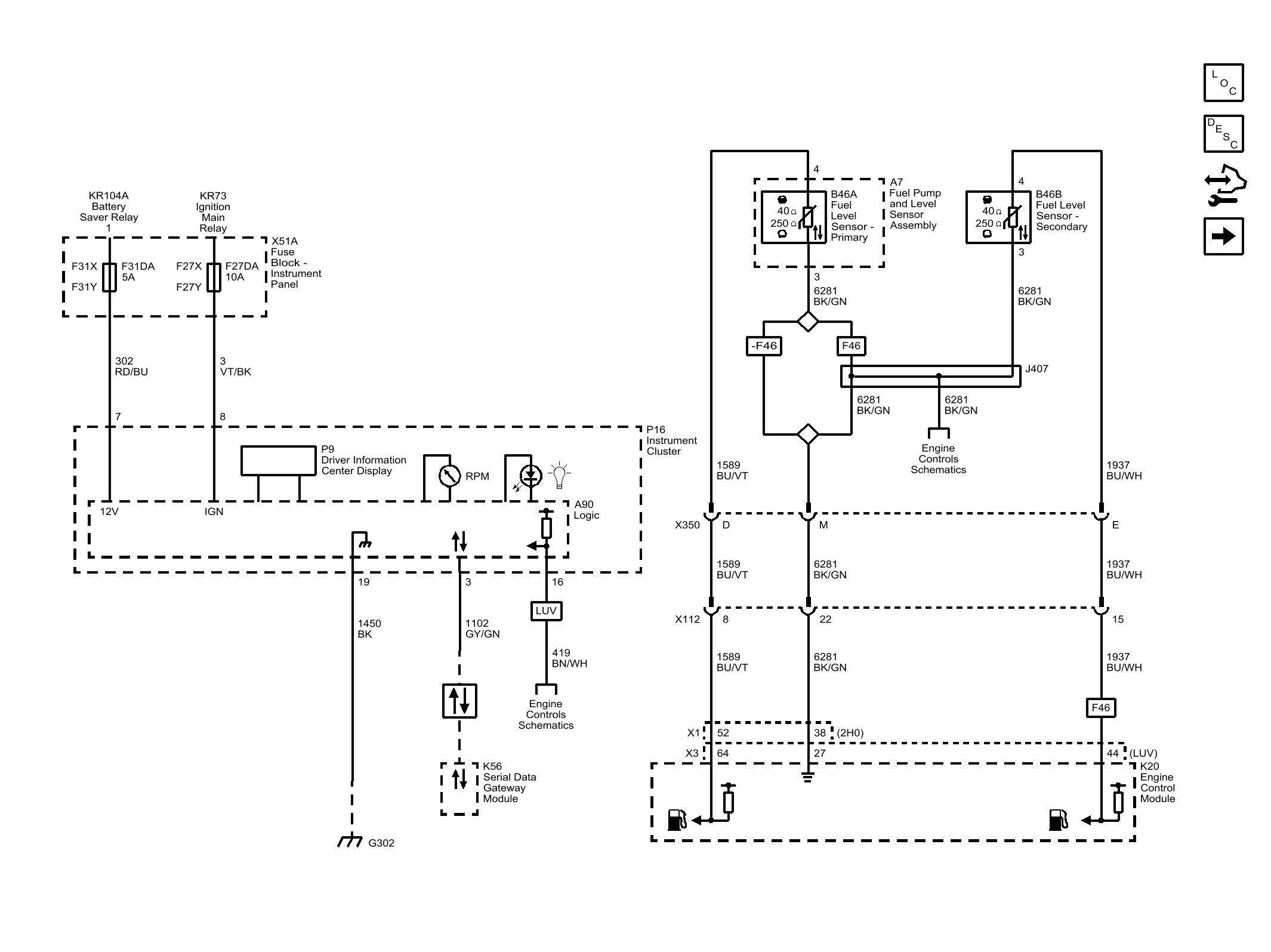

Power, Ground, Serial Data, and Gauges (Chevrolet)

GM4708750
