Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics (Chevrolet) >> Compass (Chevrolet with U80 without UE1)

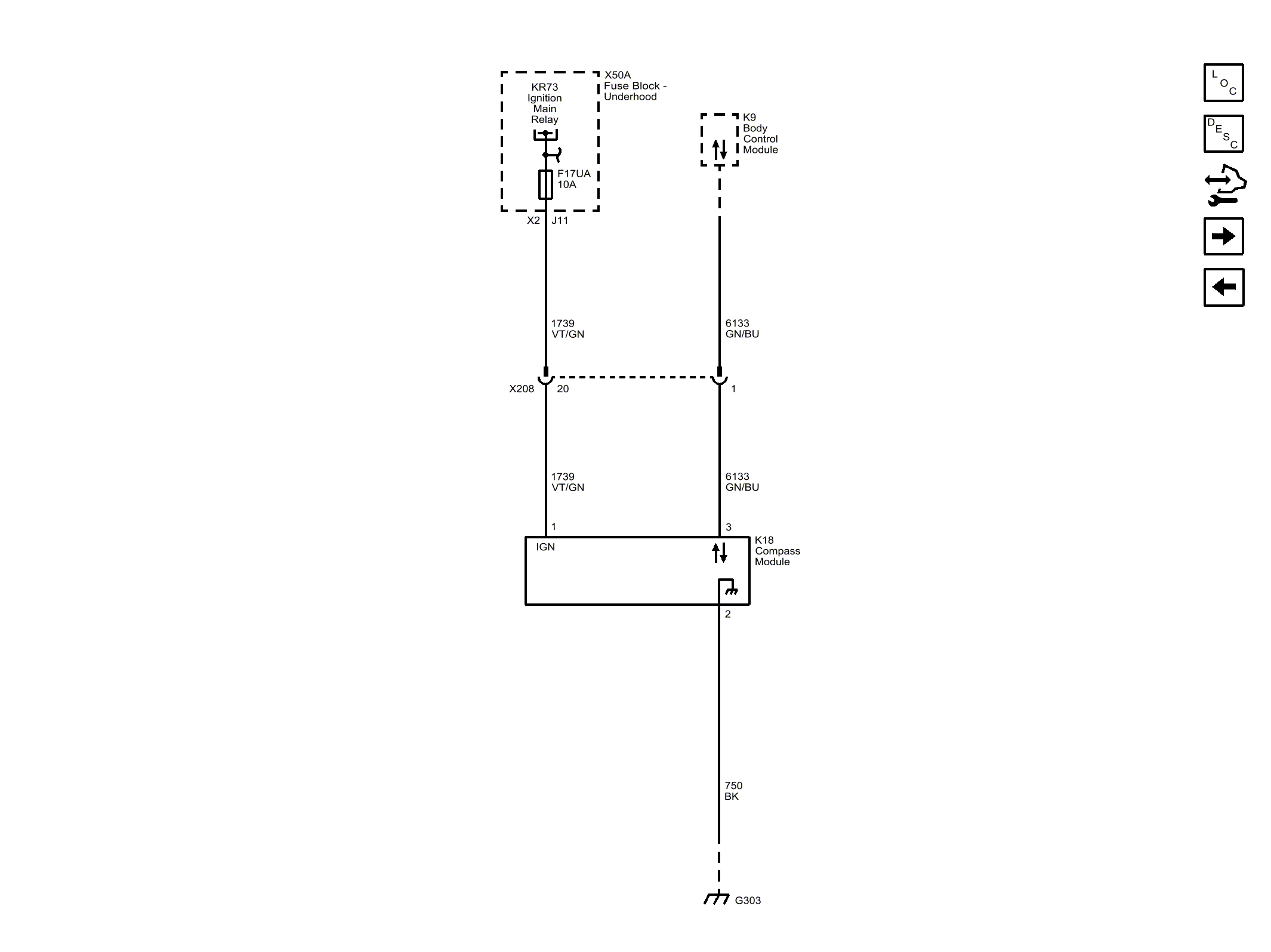

Compass (Chevrolet with U80 without UE1)

GM4708754
