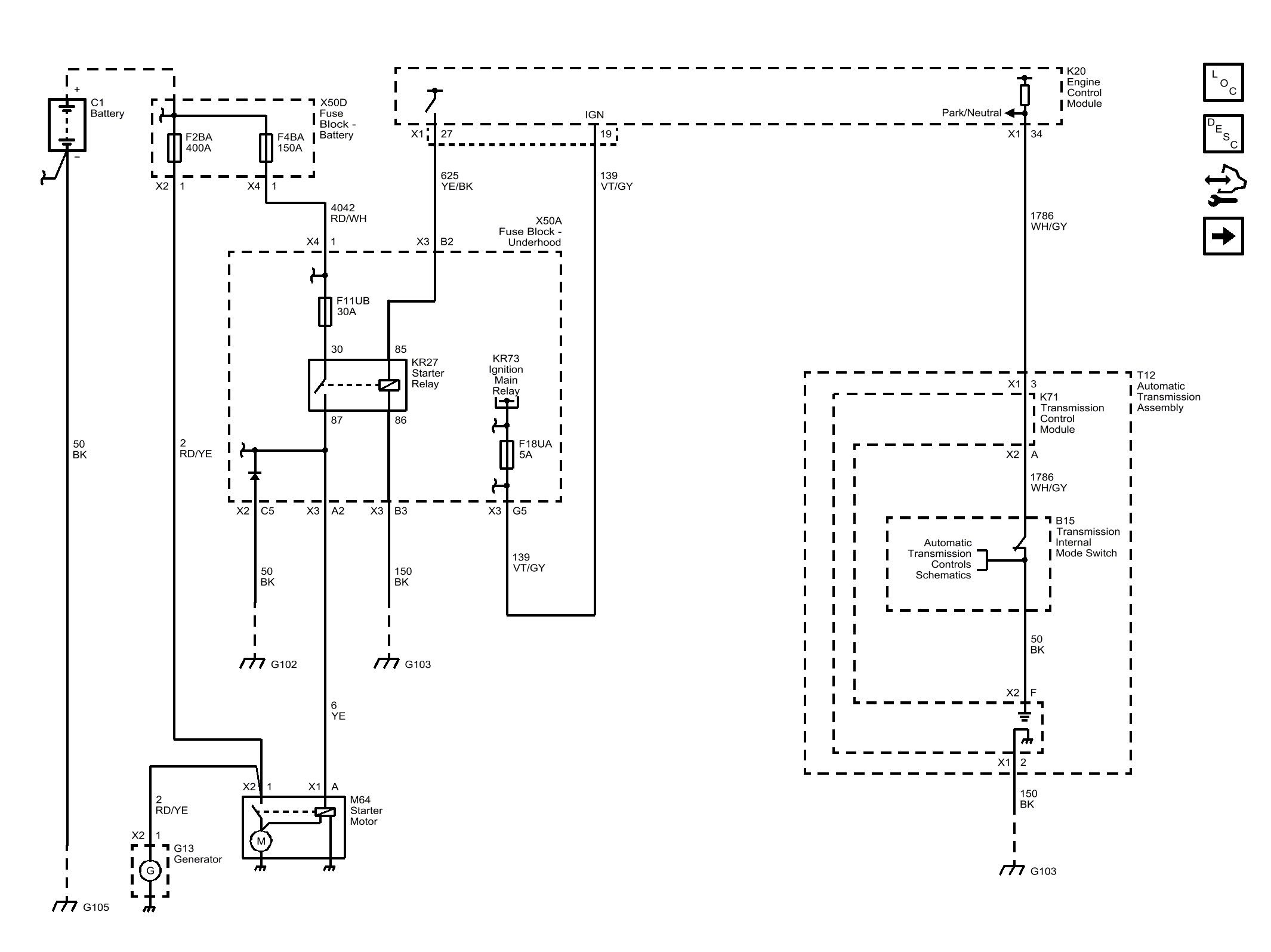

Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Charging Systems >> 12 V Starting And Charging System >> Schematic Wiring Diagrams >> Starting and Charging Wiring Schematics (Buick with LUV) >> Starting (Buick with LUV)
