Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Power Distribution Wiring Schematics (Trax) >> F5DB, F21DA, F22DA, F25DA, F29DA, F31DA, and F32DA Fuses (Trax)

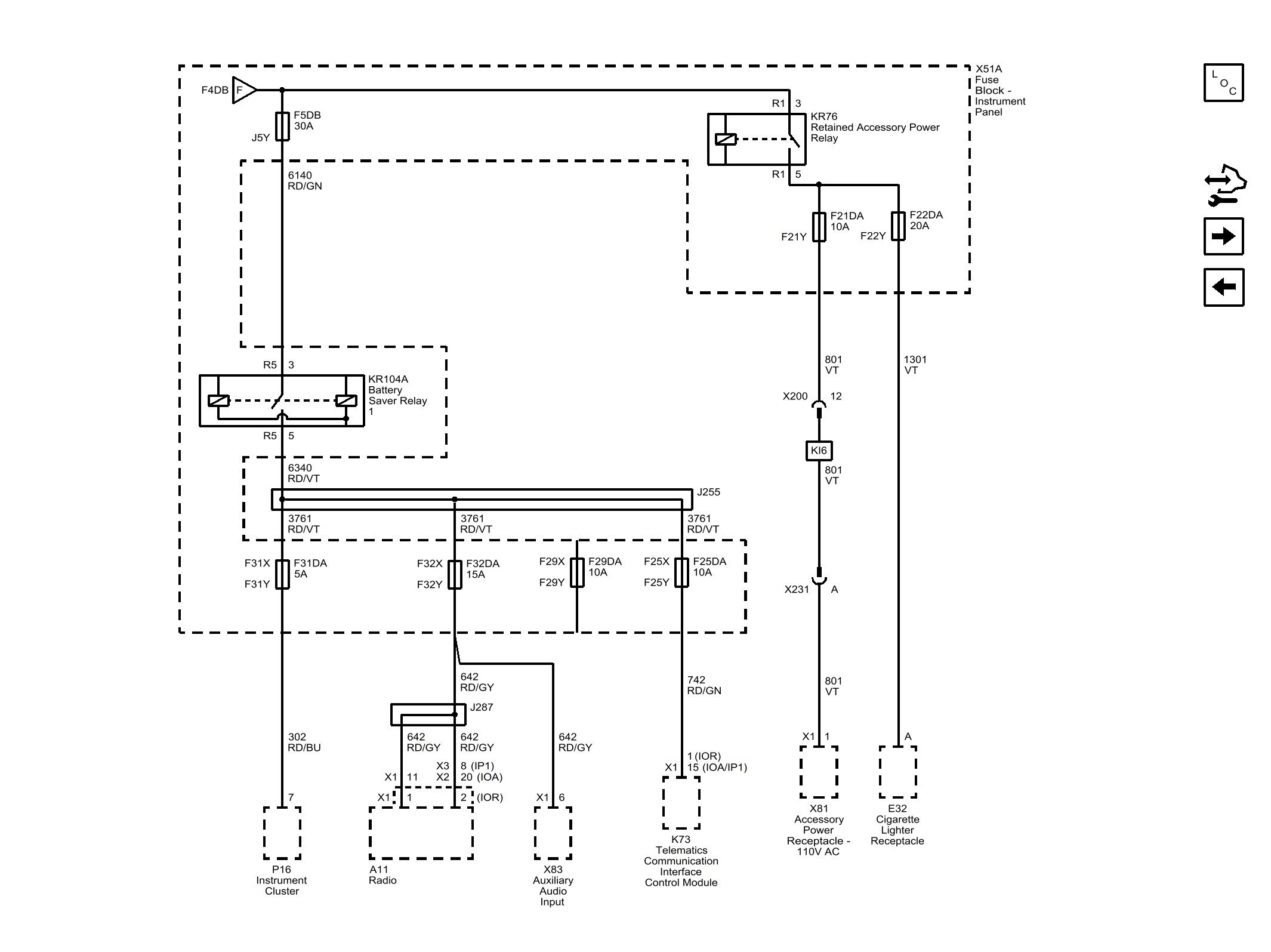

F5DB, F21DA, F22DA, F25DA, F29DA, F31DA, and F32DA Fuses (Trax)

GM4708887

Courtesy of GENERAL MOTORS COMPANY
