Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Power Distribution Wiring Schematics (Trax) >> F3DB, F4DB, F13DA, F14DA, F15DA, F16DA, F17DA, F18DA, and F19DA Fuses (Trax)

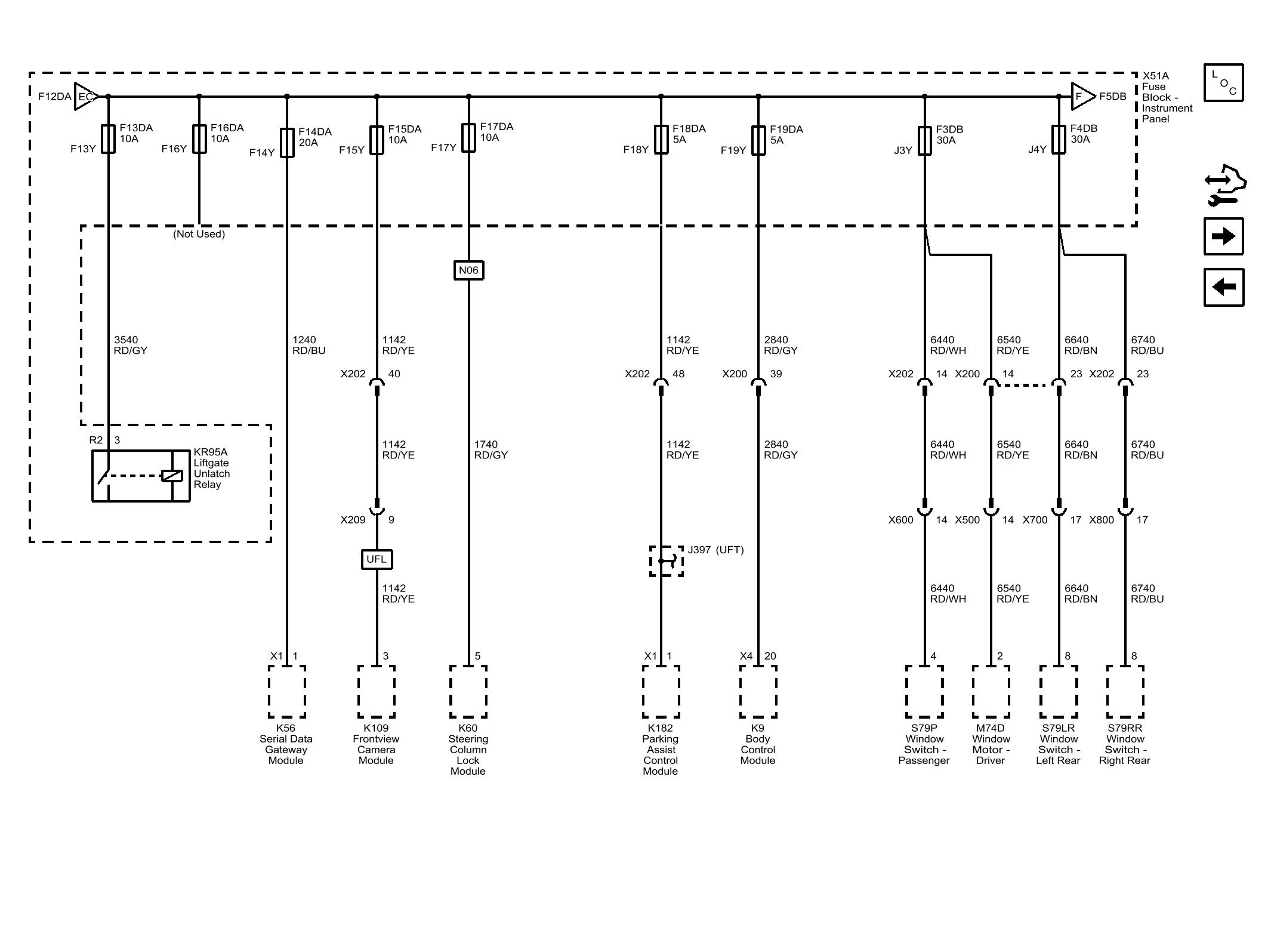

F3DB, F4DB, F13DA, F14DA, F15DA, F16DA, F17DA, F18DA, and F19DA Fuses (Trax)

GM4708883

Courtesy of GENERAL MOTORS COMPANY
