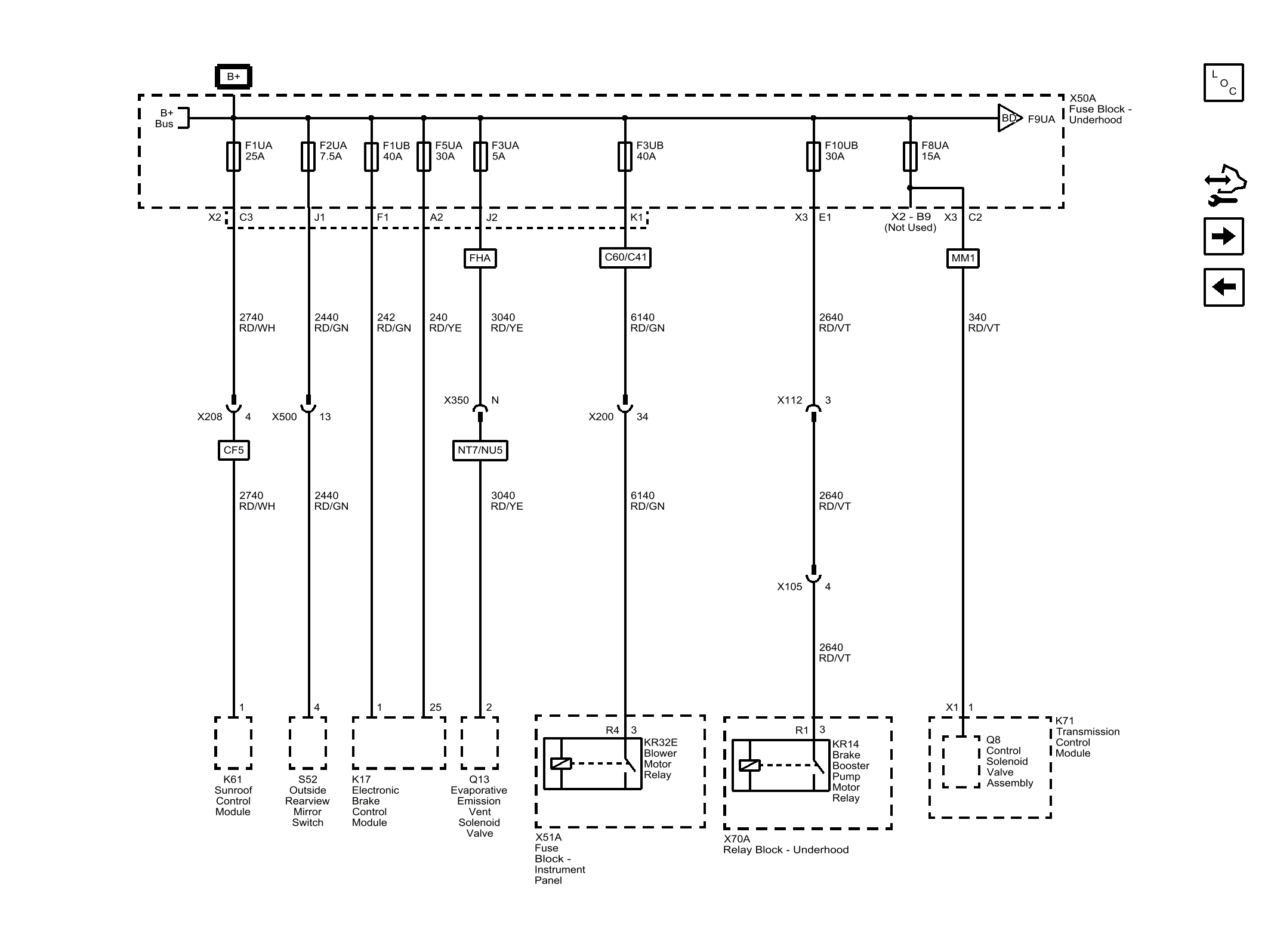

F1UA, F1UB, F2UA, F3UA, F3UB, F5UA, F8UA, and F10UB (Trax)

GM4708871

Courtesy of GENERAL MOTORS COMPANY
