Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Power Distribution Wiring Schematics (Trax) >> F1RA, F2RA, F3RB, and F5BA Fuses (Encore)

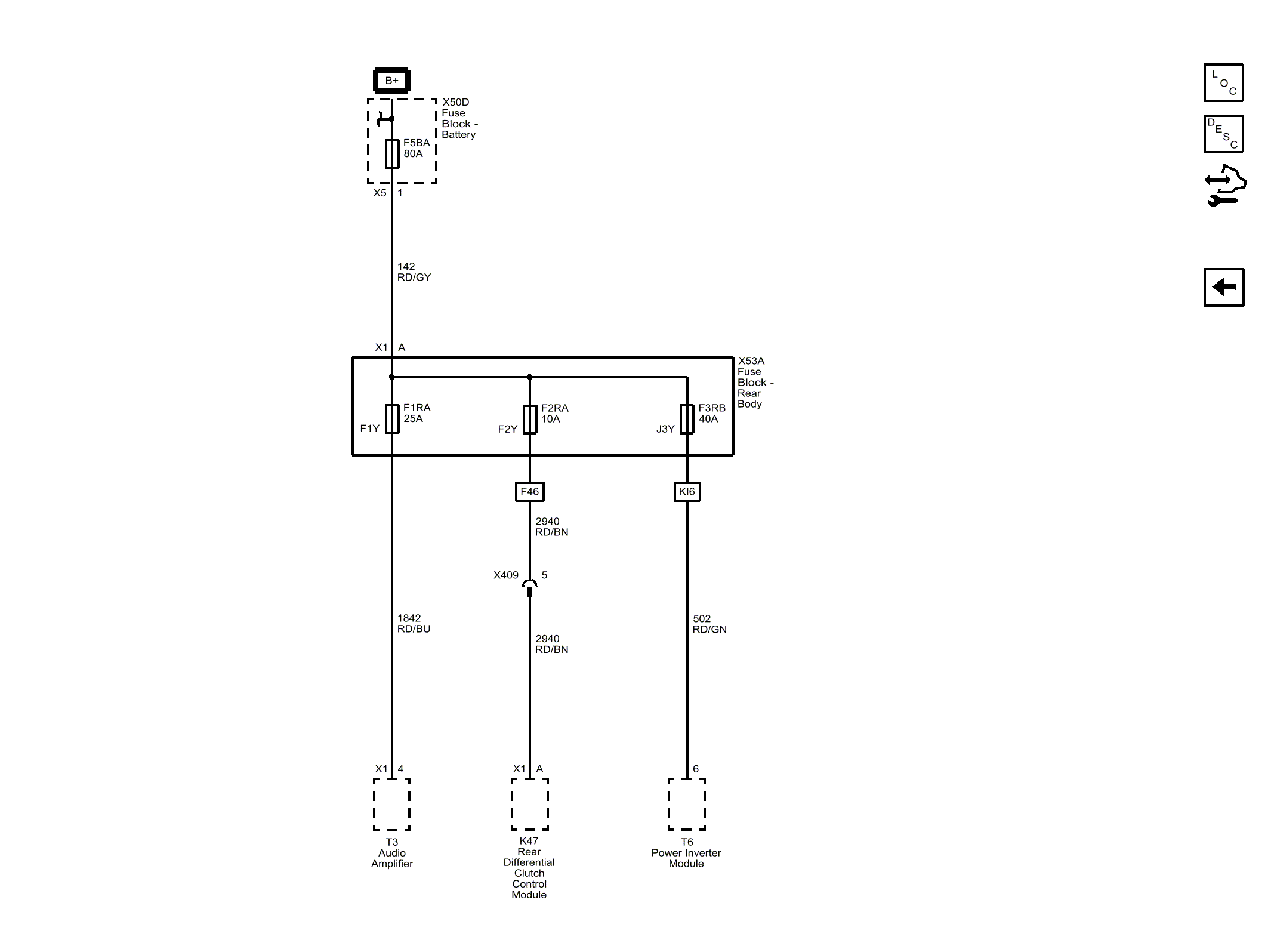

F1RA, F2RA, F3RB, and F5BA Fuses (Encore)

GM4708892

Courtesy of GENERAL MOTORS COMPANY
