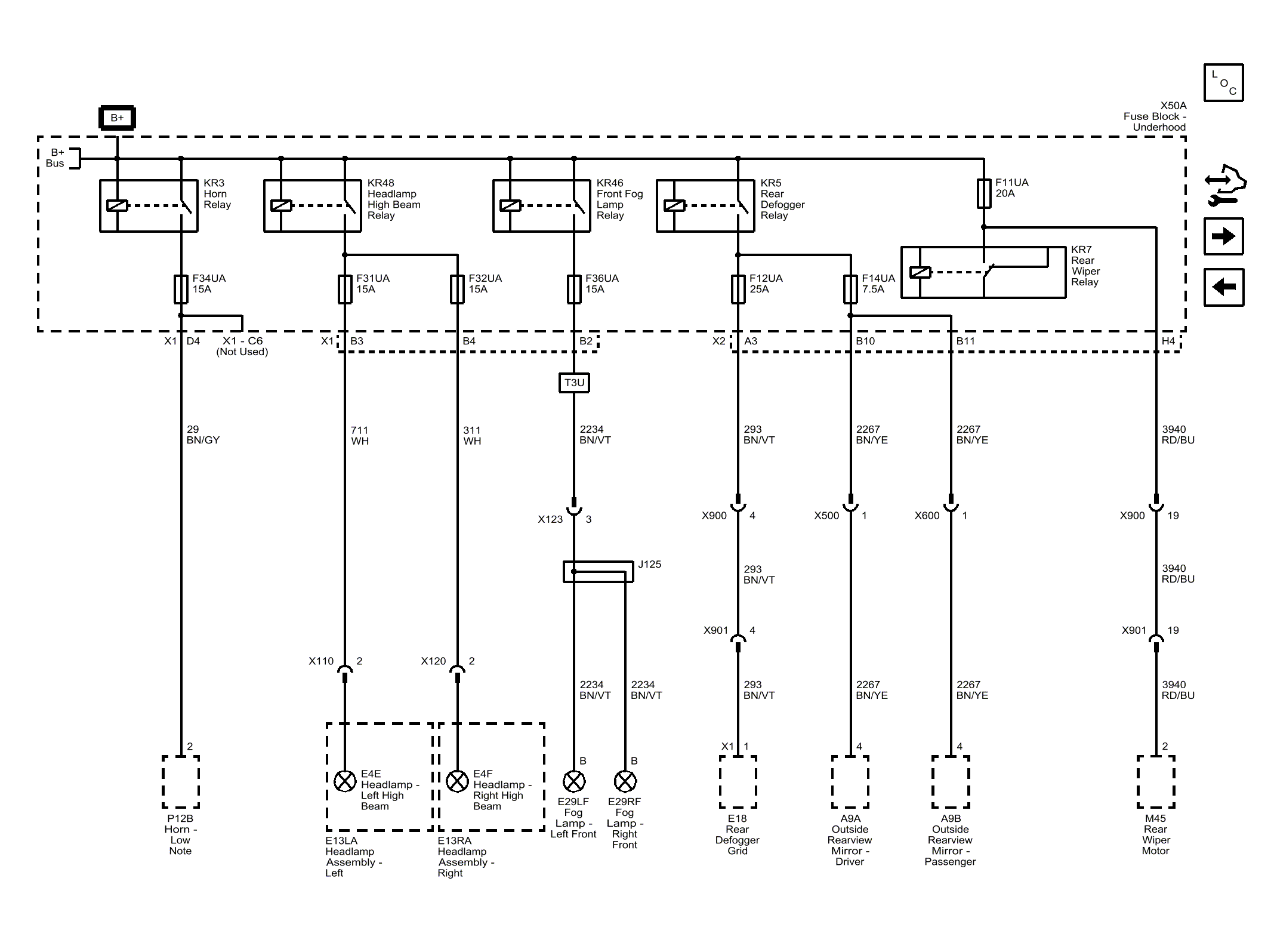

F11UA, F12UA, F14UA, F31UA, F32UA, F34UA, and F36UA (Trax)

GM4708873

Courtesy of GENERAL MOTORS COMPANY
