Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Power Moding Wiring Schematics (Buick) >> KR76 Retained Accessory Power Relay and KR104A Battery Saver Relay 1 (Buick)

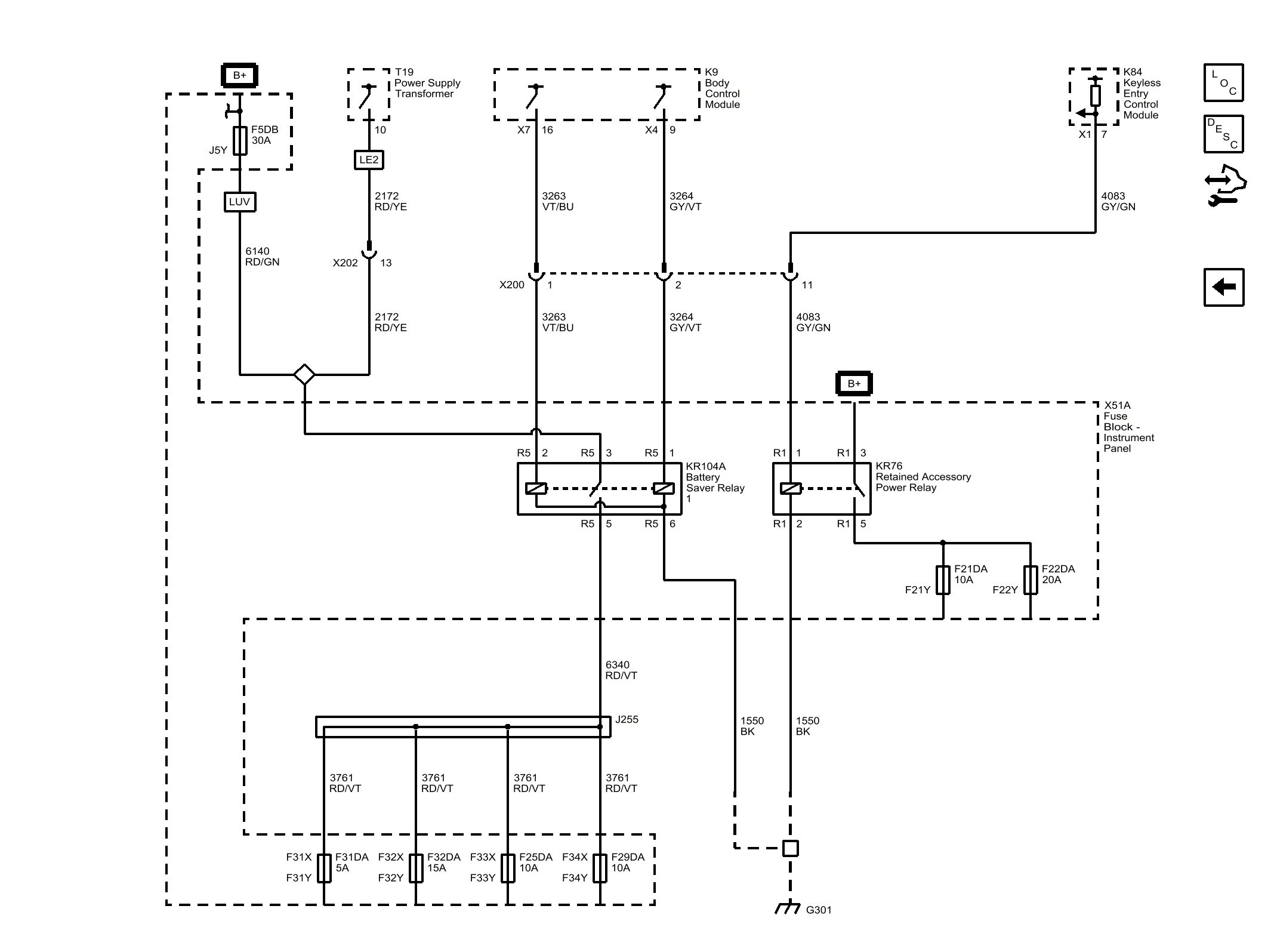

KR76 Retained Accessory Power Relay and KR104A Battery Saver Relay 1 (Buick)

GM4704633
