Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Power Distribution Wiring Schematics (Buick) >> F8UA, F9UA, F10UB, F13UA, F15UA, F16UA, and F33UA Fuses (Buick)

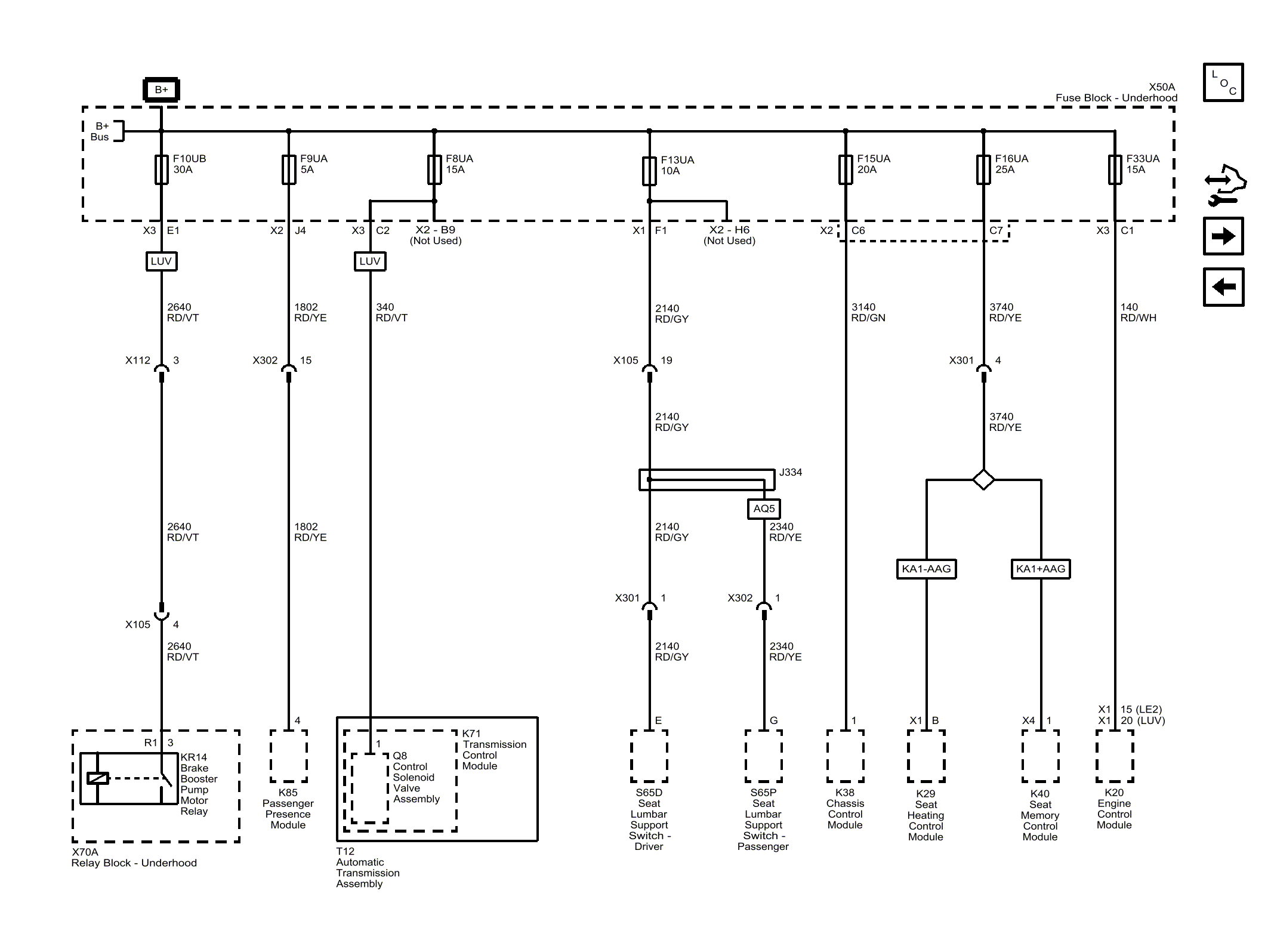

F8UA, F9UA, F10UB, F13UA, F15UA, F16UA, and F33UA Fuses (Buick)

GM4704620
