Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Power Distribution Wiring Schematics (Buick) >> F1UA, F1UB, F2UA, F3UA, F3UB, F5UA, and F6UA (Buick)

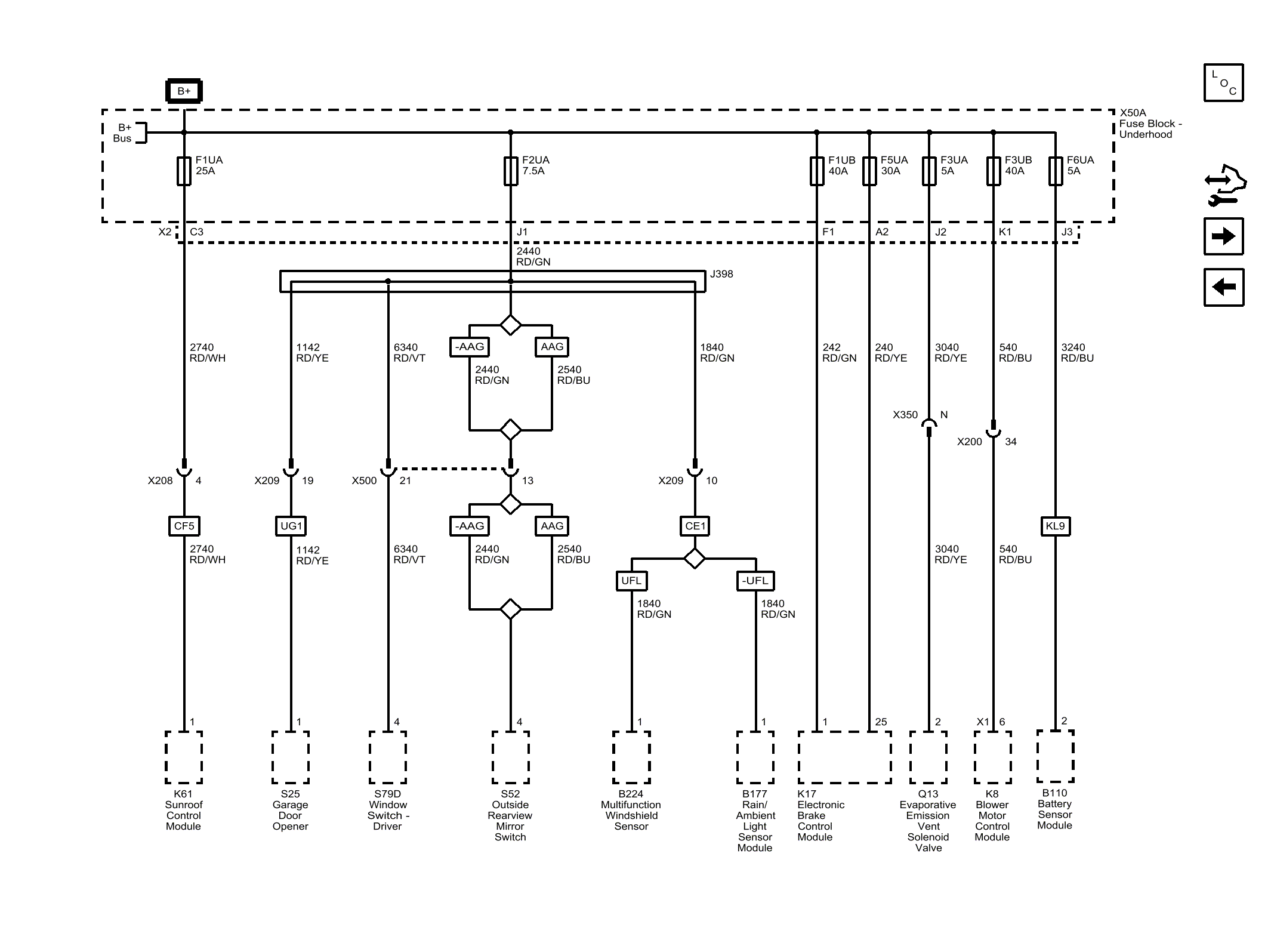

F1UA, F1UB, F2UA, F3UA, F3UB, F5UA, and F6UA (Buick)

GM4704618
