Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics (Chevrolet) >> G401 (1 of 2) (Chevrolet)

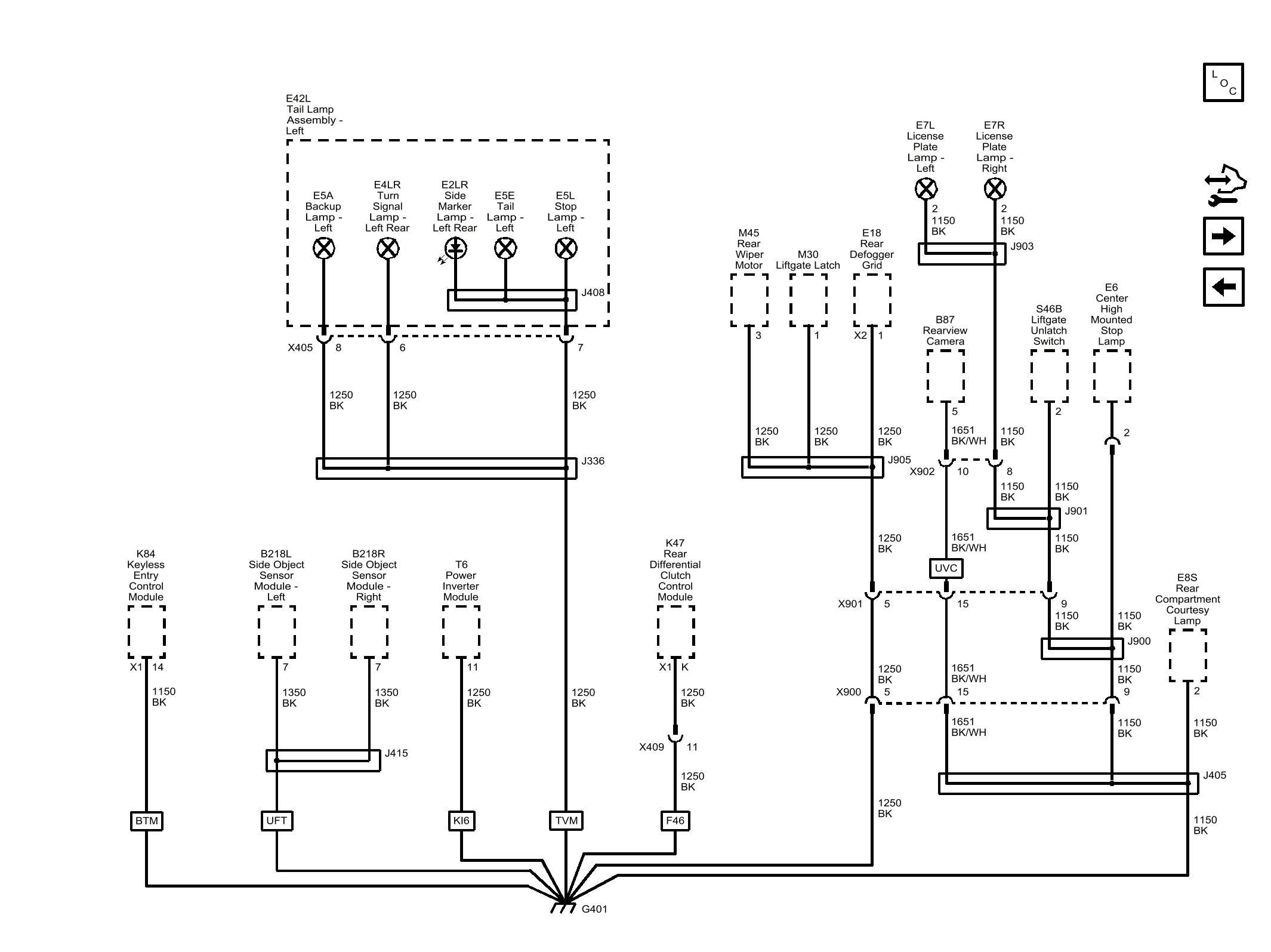

G401 (1 of 2) (Chevrolet)

GM4709153
