Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics (Chevrolet) >> G104, G105, G106, G107, G200, G201, G202, G203, and G204 (Chevrolet)

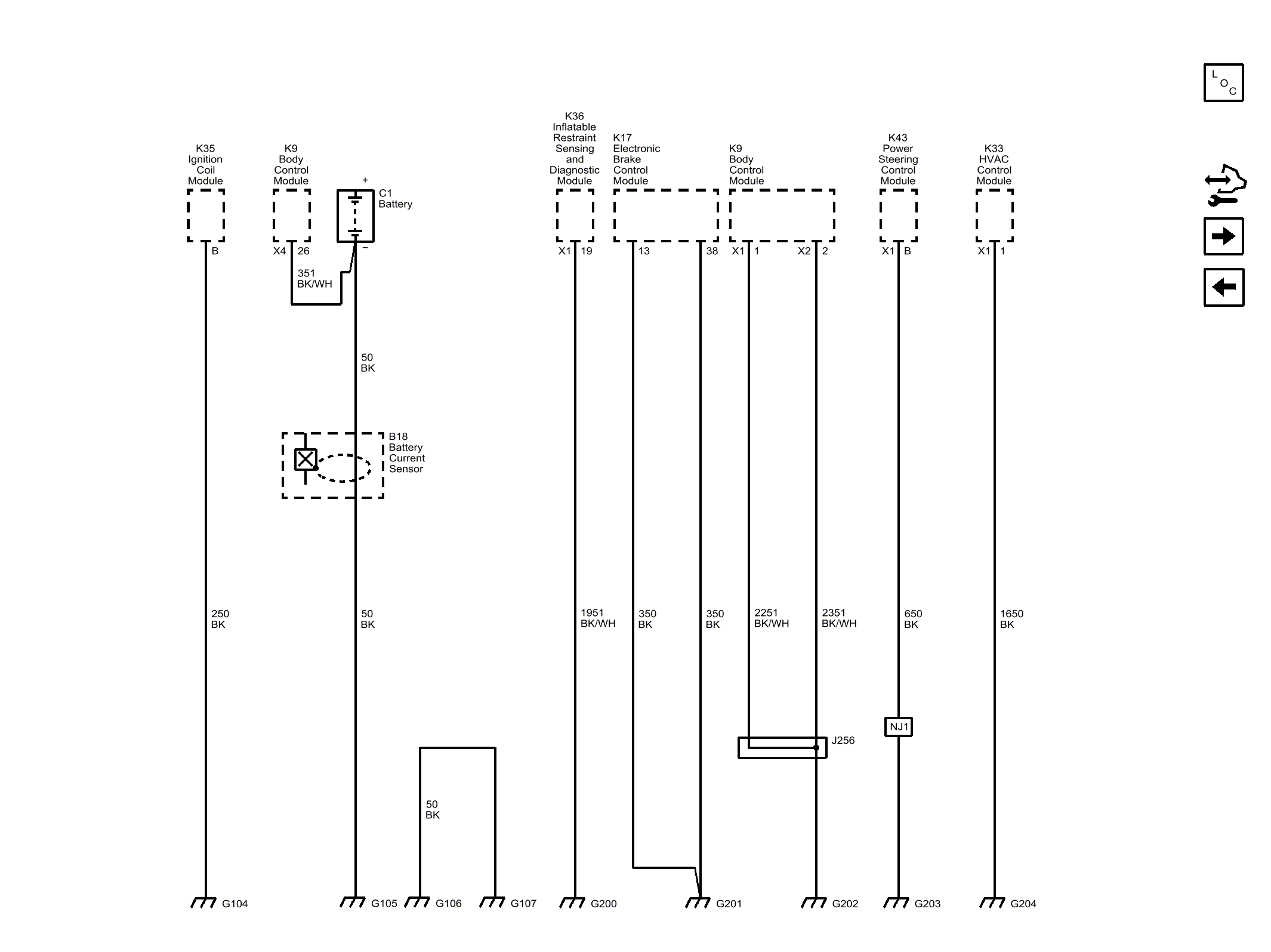

G104, G105, G106, G107, G200, G201, G202, G203, and G204 (Chevrolet)

GM4709141
