Removal Procedure
WARNING:
Refer to Brake Dust Warning .
WARNING:
Refer to Brake Fluid Irritant Warning .
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

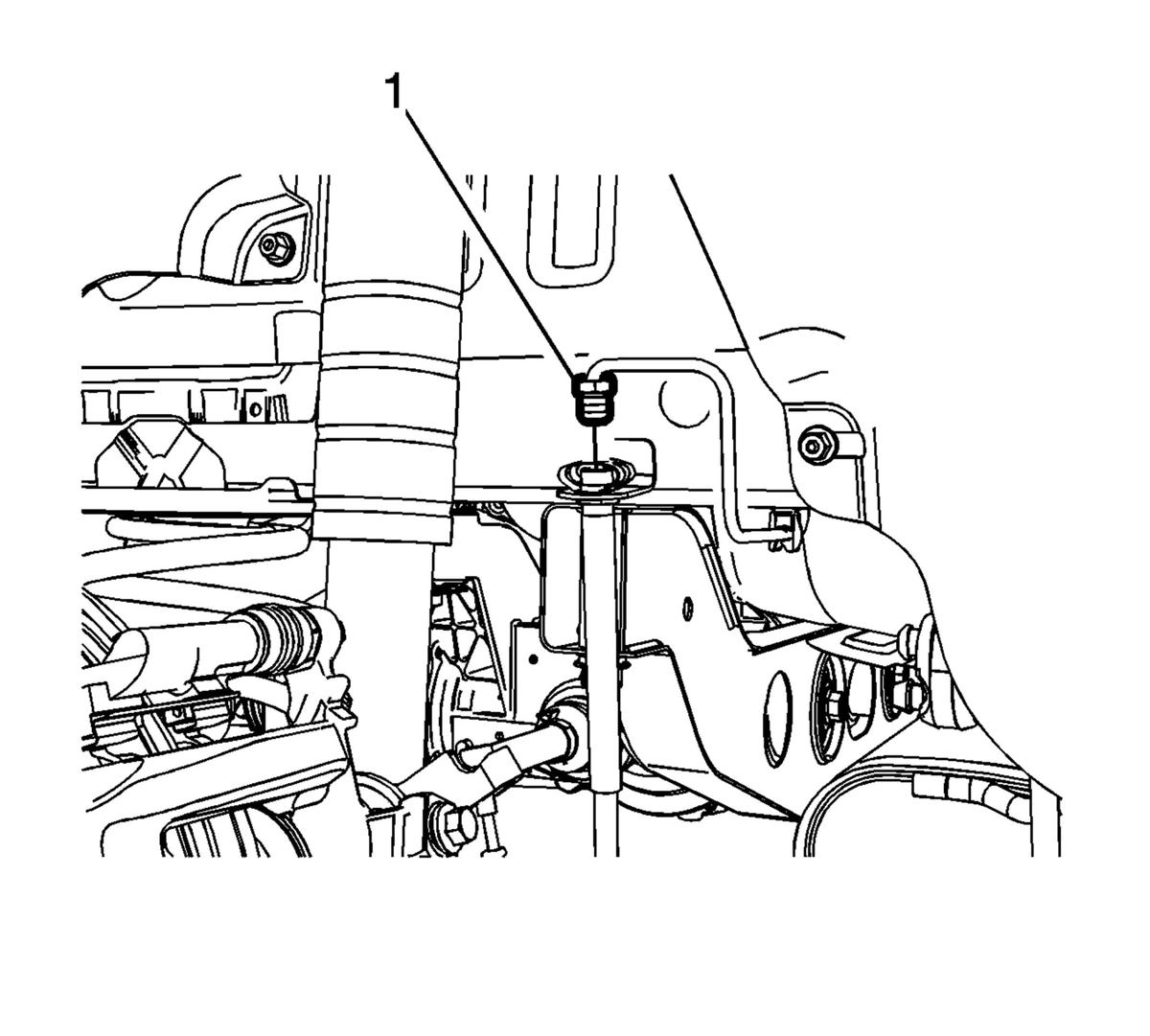

Remove the brake pipe fitting (1) from the rear brake hose.
- Cap the brake pipe fitting to prevent brake fluid loss and contamination.

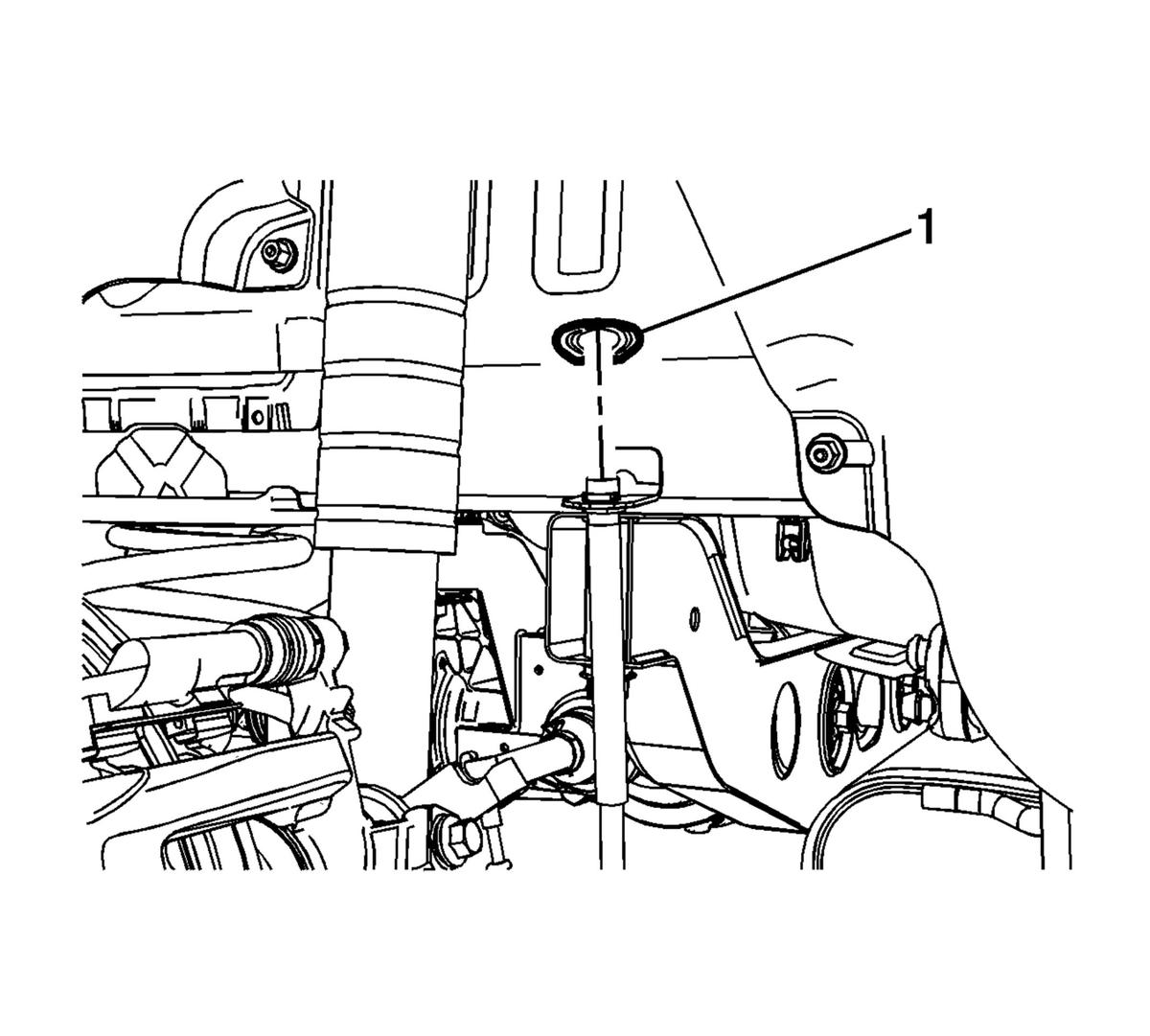

Remove the brake hose retainer (1).

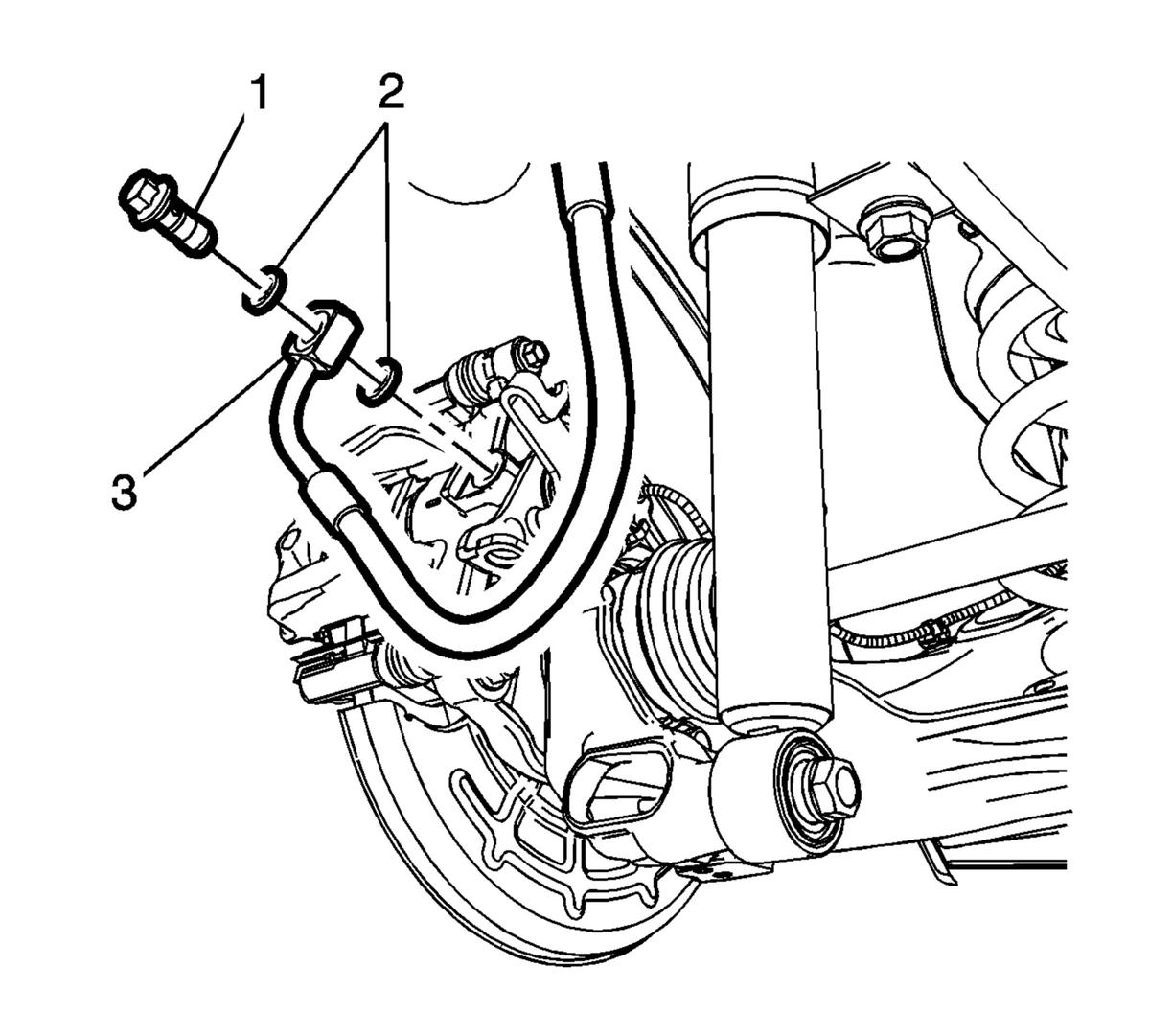

Remove the brake hose fitting bolt (1).
- Remove and discard the brake hose fitting gaskets (2) from the brake hose fitting (3).
- Remove the brake hose.
NOTE:
Do not reuse the brake hose fitting gaskets.
