Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Seat Heating System And Seat Cooling System >> Schematic Wiring Diagrams >> Heated/Cooled Seat Wiring Schematics (Buick) >> Heated Seats (Buick with KA1 without AAG)

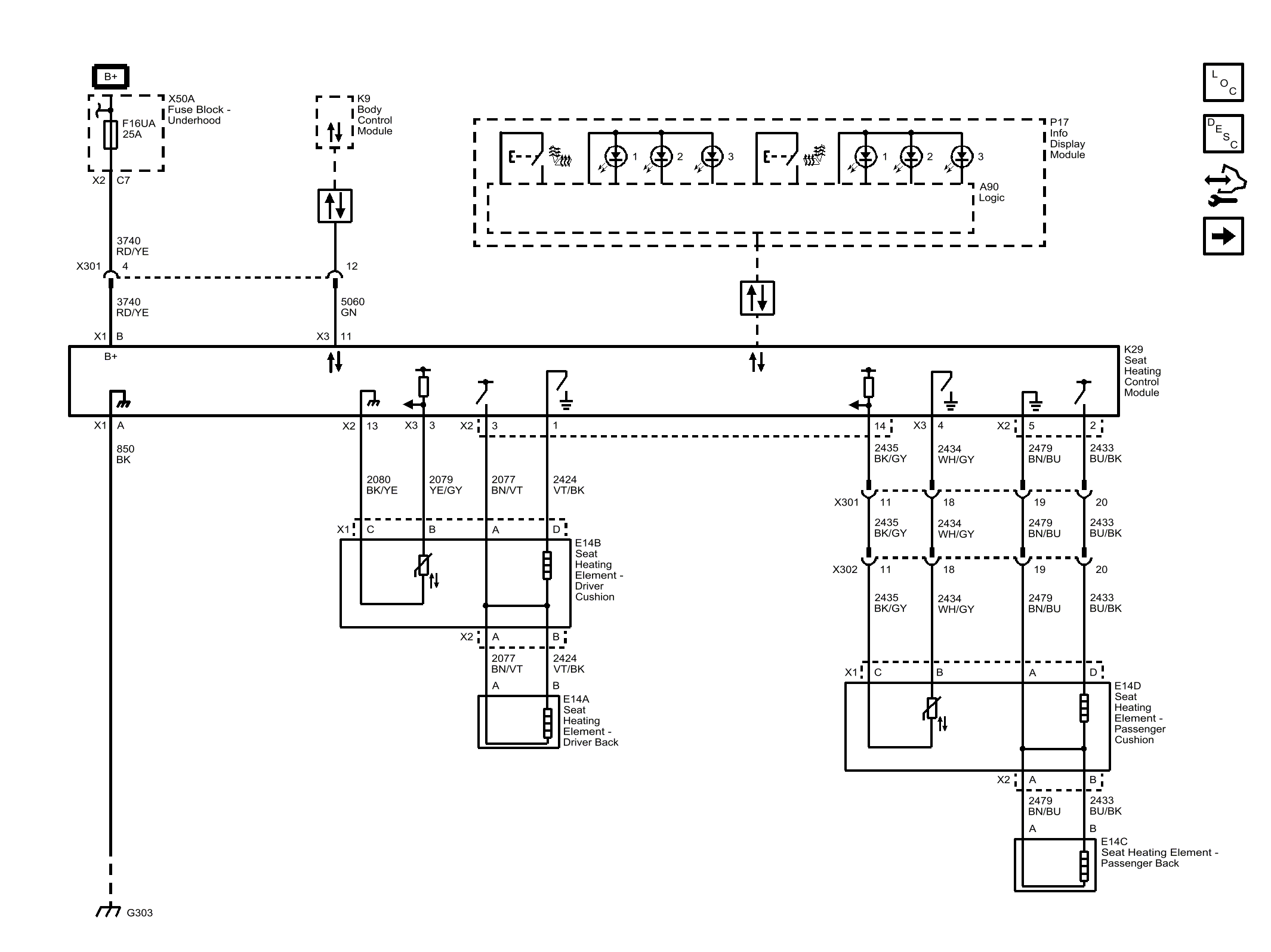

Heated Seats (Buick with KA1 without AAG)

GM4704764
