Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Power Seat System >> Schematic Wiring Diagrams >> Driver Seat Wiring Schematics (Buick) >> Seat Adjuster Switch and Position Motors (Buick with AAG)

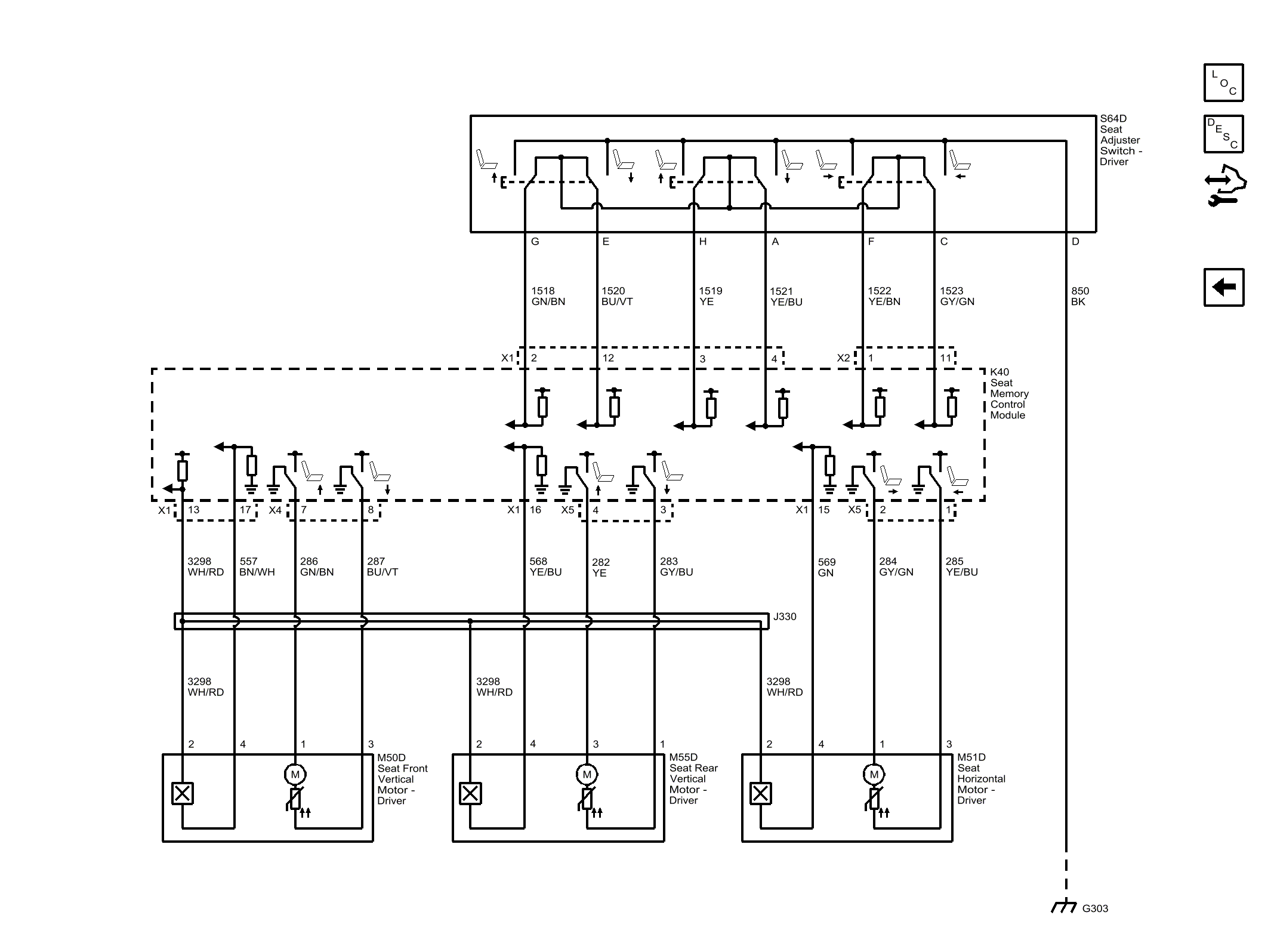

Seat Adjuster Switch and Position Motors (Buick with AAG)

GM4704759
