Front Bumper Upper Impact Bar Replacement

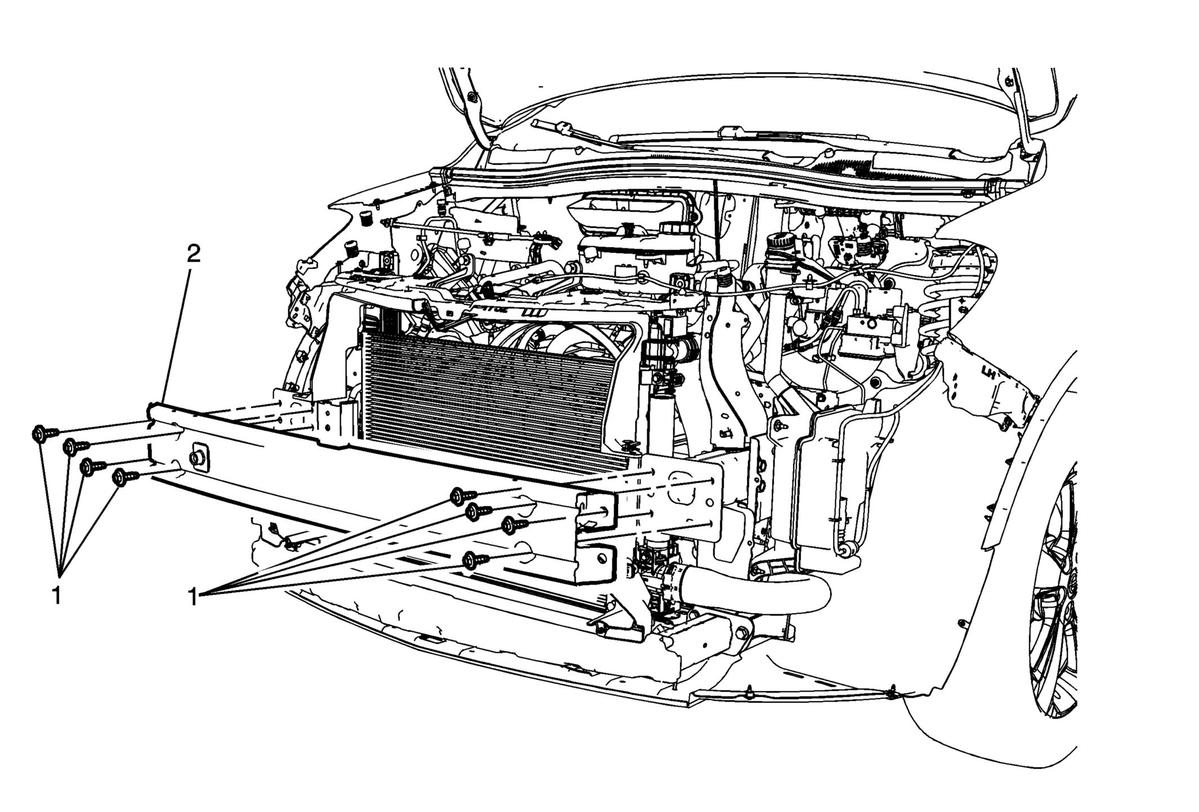

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement . Remove the 3 radiator air baffle push-in retainers.
1	Front Bumper Upper Impact Bar Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 32 N.m (24 lb ft)
2	Front Bumper Upper Impact Bar

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement .
Remove the 3 radiator air baffle push-in retainers.

Front Bumper Upper Impact Bar Bolt (Qty: 8)

CAUTION:

Tighten
32 N.m (24 lb ft)

Front Bumper Upper Impact Bar
