Front Bumper Lower Fascia Replacement (Chevrolet)

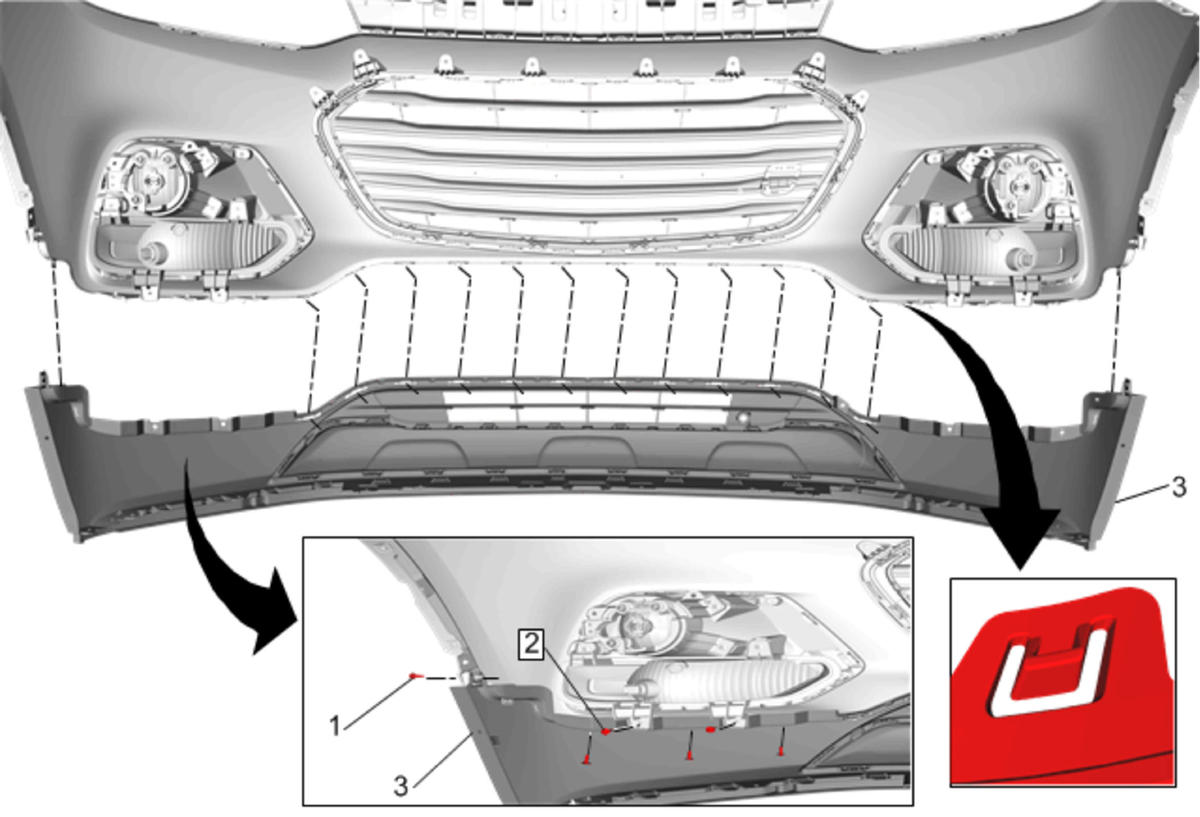

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Chevrolet)
1	Front Bumper Fascia Bolt [8x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Daytime Running and Front Turn Signal Lamp Bolt [4x] {If equipped} Tighten 2.5 N.m (22 lb in)
3	Front Bumper Lower Fascia Procedure Place the front bumper fascia down on a clean protected surface. Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia. Transfer components as necessary.
