Front Bumper Lower Fascia Replacement (Buick)

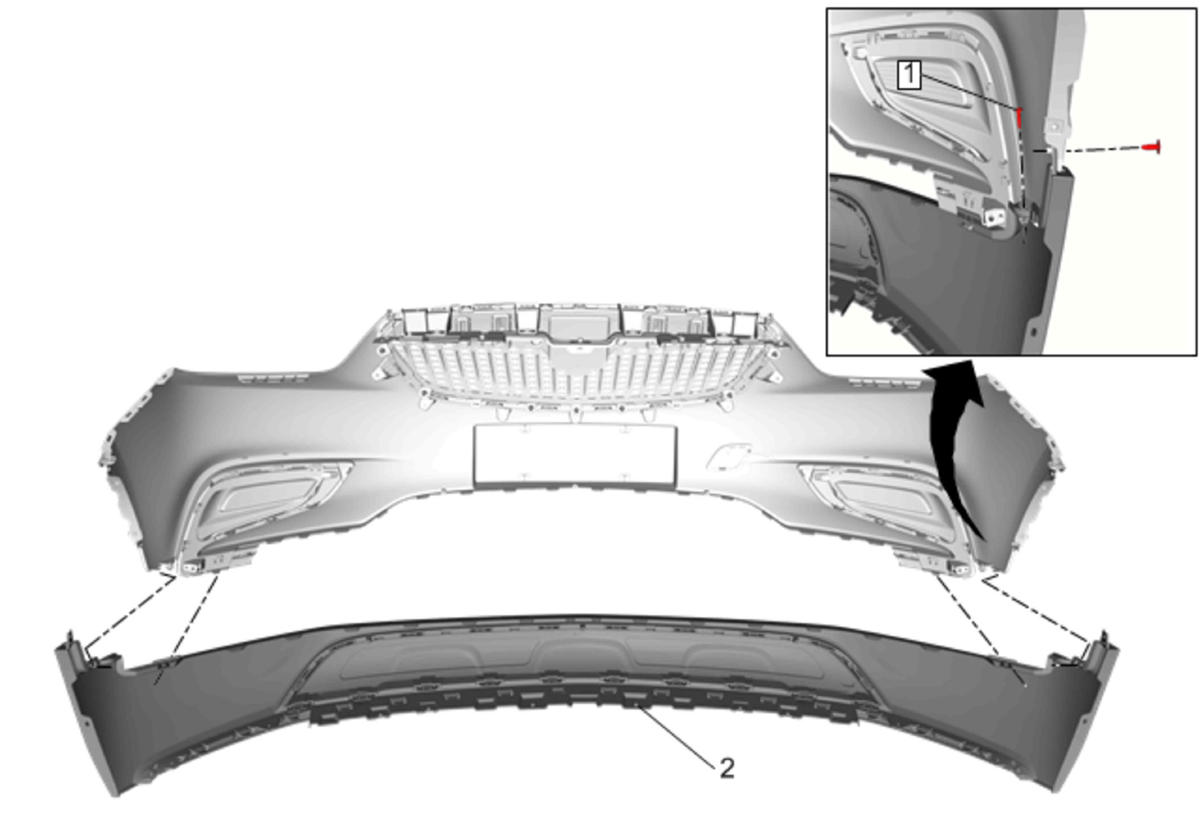

GM4335702
Callout Component Name
Preliminary Procedure
Front Bumper Lower Fascia Center Grille Replacement (Buick)
1 Front Bumper Lower Fascia Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Bumper Lower Fascia

Procedure

  1. Place the front bumper fascia down on a clean protected surface.
  2. Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.
  3. Transfer components as necessary.
