Removal Procedure

  1. Tire and Wheel - Remove - Tire and Wheel Removal and Installation
  2. Front Bumper Fascia Opening Upper Cover - Remove - Front Bumper Fascia Opening Upper Cover Replacement
  3. GM4563426

    Front Bumper Fascia Bolt (1) - Remove [2x]

  4. Front Bumper Fascia Insert Bolt (2) - Remove [4x]
  5. GM4563427

    Front Wheelhouse Liner Push-In Retainer (1) - Remove [3x]

  6. Front Wheelhouse Liner Screw (2) - Remove [6x]
  7. GM4563407

    Front Fender Wheel Opening Molding Retainer (1) - Remove [4x] - Front Fender Wheel Opening Molding Replacement

  8. GM4563409

    Front Bumper Fascia Guide Bolt (1) - Remove [2x]

  9. GM4563410

    Underbody Front Air Deflector Bolt (1) - Remove [6x]

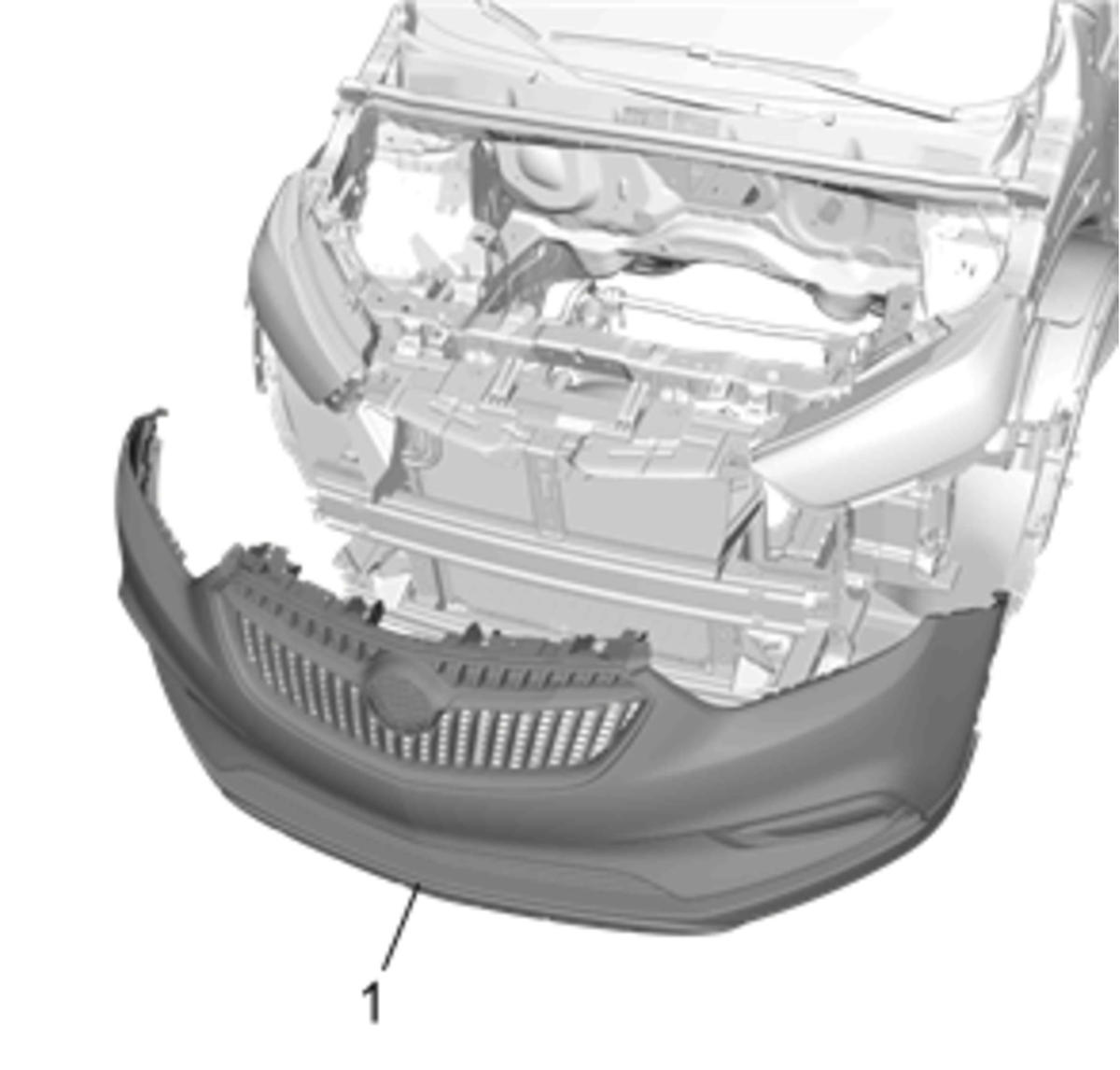

  10. GM4563462

    Pull the front bumper fascia (1) carefully outwards.

  11. Disconnect all electrical connectors.
