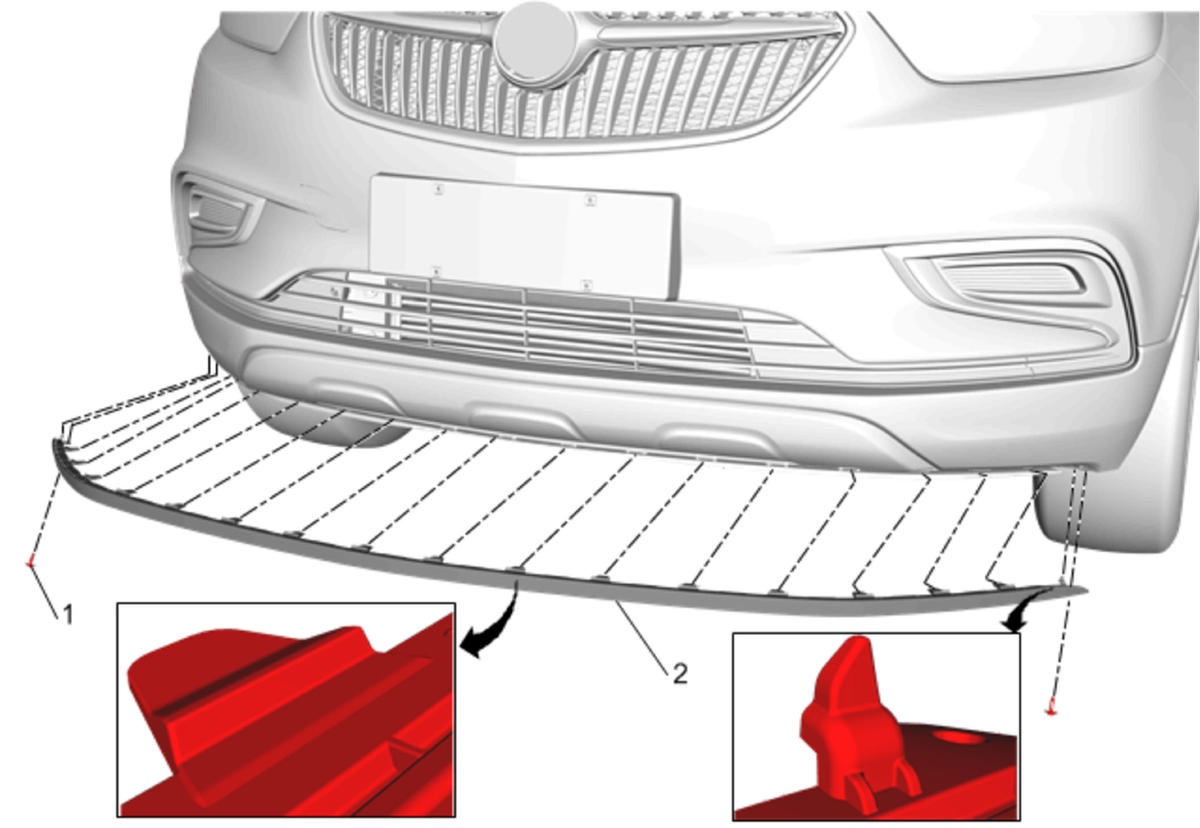

Front Bumper Fascia Air Deflector Replacement

Callout	Component Name
Preliminary Procedure Underbody Front Air Deflector Replacement
1	Front Bumper Fascia Air Deflector Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Air Deflector Procedure Release the 2 vertical retainers. Use a small flat-bladed tool to release the front bumper fascia air deflector locking tabs and pull away from the fascia.

Callout

Component Name

Front Bumper Fascia Air Deflector Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Bumper Fascia Air Deflector

Procedure

Release the 2 vertical retainers.
Use a small flat-bladed tool to release the front bumper fascia air deflector locking tabs and pull away from the fascia.
